This guide separates the two: the water pressure surge that stresses piping (water hammer), and the demand surge that makes the utility meter over-register. It covers how each one happens, how to tell them apart, and how surge-driven over-registration is corrected at the meter.
Key Takeaways
- A water pressure surge (water hammer) is a pressure wave from a sudden stop in flow; it is a piping and equipment issue
- A demand surge is a sudden jump in flow through the meter; during it, pressure inside the meter drops, gas and vapor form, and the meter counts that volume as water
- Banging and pipe vibration point to water hammer, not to meter over-registration; over-registration shows up on the bill
- A separate issue from water hammer control: the Flow Conditioning Device (FCD) installs immediately after the meter and corrects surge-driven over-registration
What Is a Water Pressure Surge?

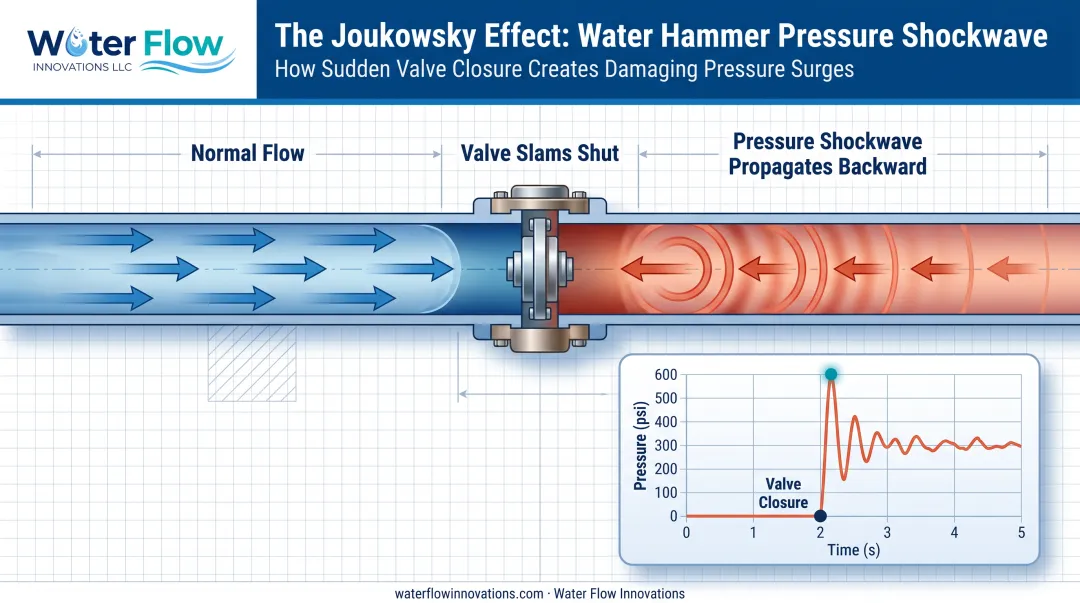

A water pressure surge, often called water hammer, is a rapid, abnormal spike in pressure caused by a sudden change in flow velocity. When a valve closes quickly, the moving column of water has nowhere to go, and the abrupt stop sends a pressure wave back through the piping: the Joukowsky effect. The faster the closure, the bigger the spike. According to ASPE's breakdown of the water hammer phenomenon, that pressure wave can travel through water at more than 4,800 feet per second, so the shock reaches the whole system almost at once.
Typical sources in commercial and industrial buildings are quick-closing solenoid and process valves, booster pumps that start or stop abruptly, and swings in municipal supply pressure.

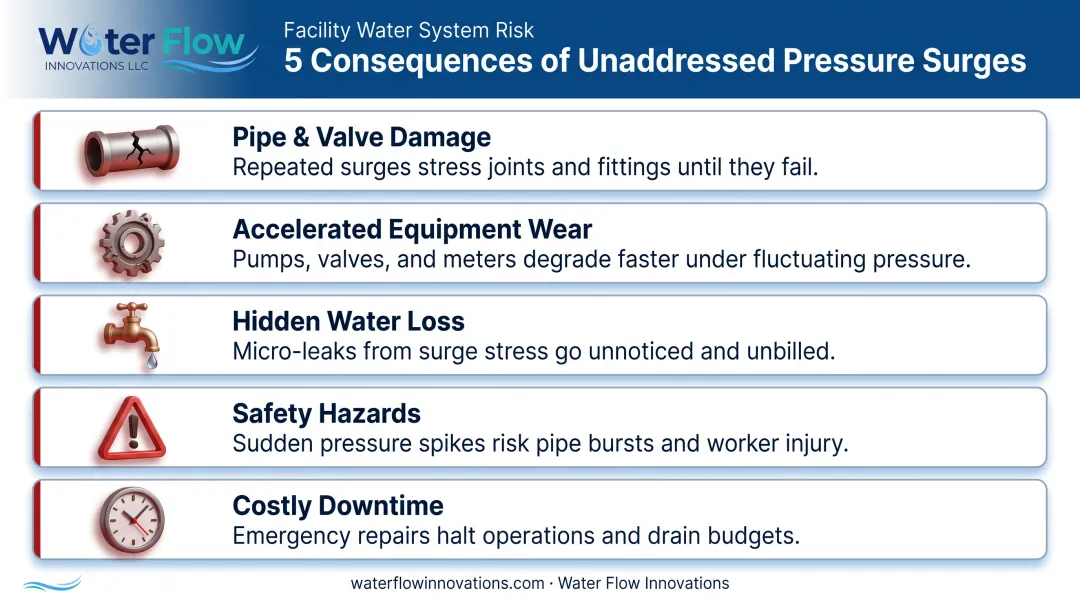

Left alone, repeated water hammer stresses pipes, valve seals, pumps, and connected equipment. The Hydraulic Institute's guidance on mitigating water hammer notes that brittle materials such as cast iron can crack under transient pressure, while ductile materials can deform without visible failure.
Water hammer is handled at its source, with arrestors, surge relief valves, slow-closing valves, and soft-start pump controls, and it warrants an engineering review when banging or vibration keeps recurring. That is plumbing work. The rest of this guide is about the other kind of surge: the one that affects what the water meter records.
Water Pressure Surge vs. Demand Surge at the Meter
The two events start in similar places but do different things.
| Water pressure surge (water hammer) | Demand surge | |
|---|---|---|
| What happens | Flow stops suddenly and a pressure wave travels through the piping | Flow through the meter jumps suddenly as valves open, pumps start, or many fixtures run at once |
| What it affects | Pipes, valve seals, pumps, and equipment | What the utility meter records |
| How you notice it | Banging, knocking, or pipe vibration | Water use on the bill that climbs faster than activity, especially at peak times |
A demand surge makes the meter over-register through a short chain of events:
- The surge. Valves open suddenly, pumps start, or many fixtures run at once, so water speeds up through the meter.
- The pressure drop. At high velocity, pressure inside the meter drops. Pressure drop rises with the square of velocity: double the speed of the water and the pressure drop roughly quadruples.
- Gas and vapor form. Dissolved gas comes out of solution and vapor forms inside the meter.
- The meter counts it. The meter registers that volume as water, so the bill shows more than the building received.
The meter is usually accurate; demand surges in the service line cause it to over-register. It's not your meter. It's your pipes. Because most sewer charges are calculated from the same meter reading, the over-count is billed twice: once on the water charge and again on the sewer charge.
Where Surges at the Meter Come From
Several conditions in a commercial service line add to over-registration, because each one raises velocity or lowers pressure at the meter during a surge:
- Quick-closing valves and simultaneous demand. Flushometers, solenoid valves on irrigation and process lines, dish machines, and many fixtures opening at once at shift changes or meal times make flow through the meter jump in seconds. Fast-acting valves slamming shut also send pressure waves back toward the meter, so sudden opening and sudden closing both create the rapid pressure changes that let gas and vapor form.
- Booster pump starts. A pump start suddenly pulls water through the meter at a high rate, and the pump's suction lowers pressure in the line feeding it. Every start repeats it.
- Burst equipment. Cooling tower makeup, CIP and wash systems, softener and filter backwash, tank and process fills, and irrigation zones call for large volumes on a cycle, often at full flow the moment they start.
- Supply-pressure sags. When utility pressure sags during neighborhood peak hours, water reaches the meter already at lower pressure, so a smaller velocity jump is enough for gas to come out of solution.
- A hunting PRV. A pressure-reducing valve that opens and closes repeatedly sends pressure swings back through the meter.
- Backflow preventer check valves. Check valves that snap shut when flow stops suddenly can send a pressure wave back toward the meter.
- A service line or meter that is small for today's peak demand. Velocity is flow divided by pipe area, so the same demand moves faster through a smaller service.
Some of the measures used against water hammer also reduce demand surges: soft-start and variable-speed pump controls ramp flow up gradually, slow-closing valves soften the shocks, and staggering equipment cycles avoids starting several systems at once. They rarely remove surges completely, and they can be costly to retrofit.
Signs on the Bill, Not in the Pipes
Banging, knocking, and pipe vibration are signs of water hammer. None of them is a sign of meter over-registration, and water hammer can also occur with no audible noise at all. Over-registration shows up in the billing data instead:
- Water use on the bill climbs faster than occupancy, production, or operating hours, especially at peak times
- Usage doesn't match submeters or production records
- A clean leak check, but the bill stays high
- Sewer charges rise in step with water
A meter test won't settle the question either way. Utility accuracy tests use steady, controlled flow on a test bench, which never recreates the surges that cause over-registration, so a meter can pass its test and still over-register every day in service. A new meter in the same conditions behaves the same way.
A Separate Issue: Meter Over-Registration and the FCD

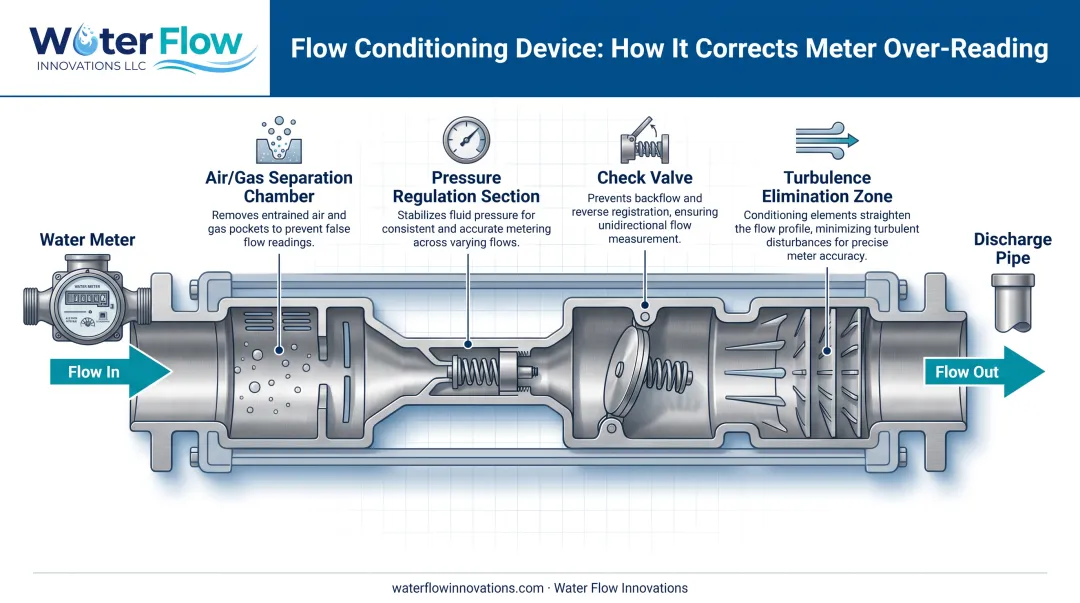

The Flow Conditioning Device (FCD) from Water Flow Innovations corrects surge-driven over-registration at the meter. It installs immediately after the utility meter, ahead of the PRV, in this order: meter, FCD, PRV, backflow preventer, building distribution. It creates a small, controlled back-pressure that extends back through the meter, holding pressure up during demand surges so far less gas and vapor form and are counted as water.
- Pressure loss across the FCD is under 0.8 psi across all flow conditions
- A licensed plumber installs it in about 1 hour, with the water off for about 1 hour
- Savings start on the next full billing cycle
- Documented installations typically show up to a 30% reduction in combined water and sewer costs (46% is the highest documented, a rare case)
An FCD will not stop a slamming valve, absorb a water pressure surge, or protect piping. It corrects what the meter records, so the meter records closer to what the facility actually receives. It does not change water use or anything downstream of the meter, and arrestors, slow-closing valves, and pump controls remain the tools for water hammer.
How to Check Your Facility
Water Flow Innovations offers a free, remote water bill review and savings analysis: a look at your water and sewer bills, meter size, and usage pattern for signs of over-registration, with no commitment. On-site visits are billable under company policy. You can also run the free savings calculator, which models your building's 24-hour flow profile, with no contact information required.
Conclusion
A water pressure surge and a demand surge are easy to confuse because both start with valves and pumps. Water hammer is a piping problem, handled at its source. Demand surges are what make the utility meter over-register: pressure inside the meter drops, gas and vapor form, and the meter counts them as water. If your bill climbs faster than your activity, look at when your building uses water, not just how much.
Frequently Asked Questions
Is a water pressure surge the same as water hammer?
Usually, yes. A water pressure surge, or water hammer, is a pressure wave created when flow stops or changes speed suddenly, such as when a quick-closing valve shuts. It stresses pipes and equipment. A demand surge is different: it is a sudden jump in flow through the meter, and that is what makes the meter over-register.
Can a water pressure surge make my water bill higher?
It can add to it. Quick-closing valves that slam shut send pressure waves back toward the meter, and those rapid pressure changes help gas and vapor form inside it. The over-count itself happens during demand surges: when valves open suddenly, pumps start, or many fixtures run at once, water speeds up through the meter, pressure inside it drops, gas and vapor form, and the meter counts that volume as water.
Can supply-pressure drops affect the water meter?
They can add to over-registration. When utility pressure sags, water reaches the meter already at lower pressure, so a smaller velocity jump during a demand surge lets gas and vapor form inside the meter. The FCD holds pressure up through the meter during those surges.
Are banging pipes a sign that my meter is over-registering?
No. Banging, knocking, and pipe vibration are signs of water hammer. Signs of over-registration show up on the bill: water use that climbs faster than occupancy, production, or operating hours, especially at peak times; usage that doesn't match submeters or production records; a bill that stays high after a clean leak check; and sewer charges rising in step with water.
My meter passed the utility's test. Can it still over-register?
Yes. Utility accuracy tests use steady, controlled flow on a test bench, which never recreates the demand surges in a working building. The meter is usually accurate; demand surges in the service line cause it to over-register. It's not your meter. It's your pipes.
Does the FCD stop water hammer?
No. The FCD does not absorb pressure waves, fix water hammer, or change pressure in the building's piping. It installs immediately after the meter, ahead of the PRV, and creates a small, controlled back-pressure that extends back through the meter, so far less gas and vapor form and are counted during demand surges.
How disruptive is installing an FCD?
A licensed plumber or mechanical contractor installs it immediately after the meter, ahead of the PRV, in about 1 hour, with the water off for about 1 hour. Pressure loss is under 0.8 psi across all flow conditions, so building pressure and downstream operations see no practical change.
Does surge-related over-reading affect the sewer charge?
In most municipalities, yes. Sewer charges are usually calculated from metered water use rather than measured discharge, so an inflated reading inflates the sewer charge by the same proportion. Correcting the reading reduces both line items, starting on the next full billing cycle.
