That dependency is under growing strain. A DOE-sponsored review found 25 drought-related incidents at 19 US nuclear plants between 2000 and 2015, most resulting in shutdowns or output curtailments. As droughts intensify and discharge rules tighten, water strategy is becoming as important as water supply.
This article breaks down where nuclear facilities actually use water, six proven ways to manage it better, and one commonly overlooked lever, correcting water meter inaccuracies, that cuts utility costs without touching plant operations at all.
Key Takeaways
- Nuclear plants rank among the most water-intensive facilities, using water for cooling, makeup, and waste treatment
- Drought and stricter discharge permits push utilities toward full water strategies, not just larger water rights
- Engineering upgrades plus billing-accuracy tools like flow conditioning compound savings without operational risk
- IAEA WAMP and similar models help facilities plan cooling upgrades before capital is spent
Why Water Management Is Mission-Critical for Nuclear Facilities
Condenser cooling drives the largest share of a nuclear plant's water demand, but the need doesn't stop at operations. IAEA guidance identifies water requirements across the entire project lifecycle. Construction flushing, cold and hot testing, primary coolant makeup, safety inventory, and radioactive liquid waste discharge all draw on the same resource base.
When Drought Forces Plants Offline
Water scarcity isn't theoretical. Millstone Nuclear Power Station in Connecticut shut down one unit in the summer of 2012 because intake water grew too warm for safe cooling. Two years later, the NRC authorised Millstone to use cooling water up to 5°F warmer than its original design basis just to keep the plant running.
That's not an isolated event. It's a documented pattern that utilities now plan around.
Regulatory and Expansion Pressures Are Compounding
Environmental permits increasingly restrict both sides of the water equation:
- Withdrawal limits under Clean Water Act Section 316(b) govern intake structure design
- Discharge limits cap effluent temperature and volume under state-issued NPDES permits
- Combined pressure means a plant can face restrictions on how much it pulls in and how much it releases
Meanwhile, demand is heading up. The DOE is backing restart projects for Palisades (800 MW) and Crane Clean Energy Center (835 MW), alongside a pipeline of advanced reactor and SMR designs.
Every restarted or newly built reactor adds to fleet-wide water demand. Every gallon wasted through inefficiency inflates consumption charges and sewer fees alike.
Where Nuclear Plants Use the Most Water
Water use in a nuclear facility falls into three main categories:
- Condenser and cooling systems — by far the largest share, whether open-loop, wet-recirculating, or dry cooling
- Primary coolant system makeup water — replacing losses in the reactor's closed coolant loop
- Radioactive liquid waste treatment — processing and discharging treated wastewater under strict permit conditions

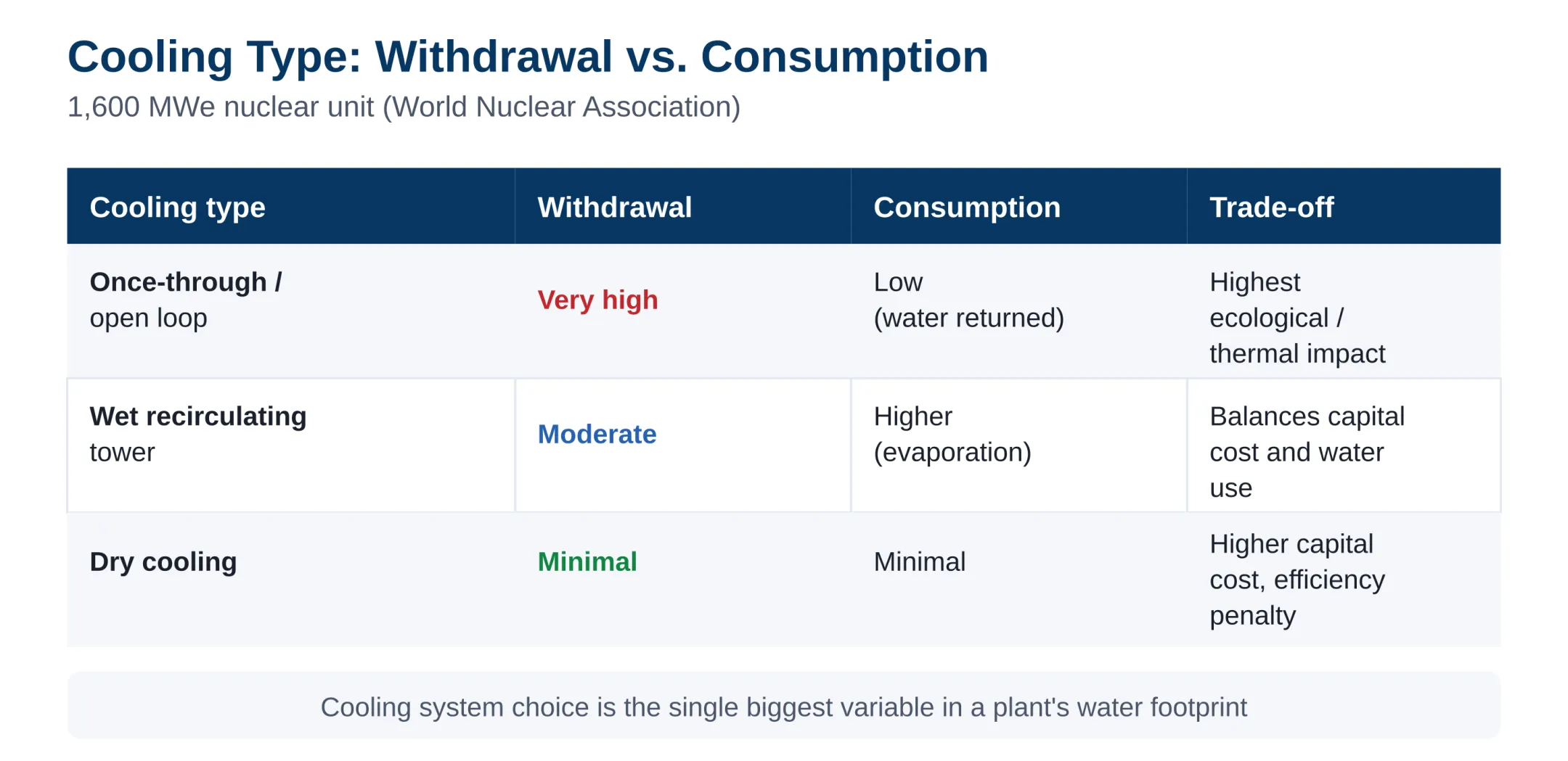

Withdrawal vs. Consumption: Why the Numbers Get Confused
Public reporting often conflates two very different metrics. Withdrawal is water pulled from a source; consumption is water permanently lost, mainly to evaporation. Cooling system choice determines which number dominates.
For a 1,600 MWe nuclear unit, the World Nuclear Association reports roughly 90 m³/s, about 2.1 billion gallons per day, withdrawn under once-through cooling. Recirculating cooling drops that to about 2 m³/s, roughly 46 million gallons per day, split evenly between evaporation and blowdown.
Operating cooling drives the headline numbers, but construction water use often gets overlooked. System flushing, cold and hot functional testing, and commissioning still require substantial volumes before a reactor produces its first megawatt.

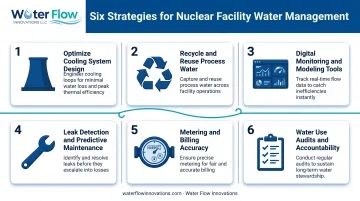

6 Proven Strategies to Enhance Water Management in Nuclear Facilities
Reducing water intensity requires a layered approach. These six strategies span capital projects, operational habits, and low-disruption fixes.
Strategy 1: Optimise cooling system design. Cooling system selection is the single biggest variable in a plant's water footprint. Moving from open-loop to closed-loop recirculating systems, or to hybrid dry and wet configurations, sharply cuts withdrawal volumes. IAEA guidance frames this as a trade-off between water savings and capital or operating cost, since dry cooling minimises water use but carries efficiency penalties and higher upfront investment.
Strategy 2: Recycle and reuse process water. Treated wastewater and cooling tower blowdown don't have to go straight to discharge. Facilities can redirect this water toward grounds irrigation, dust control during construction or maintenance, and non-critical wash-down applications. Every gallon reused is a gallon that doesn't need to be withdrawn fresh.
Strategy 3: Deploy digital monitoring and modelling tools. The IAEA's Water Management Program (WAMP) models withdrawal, consumption, and cooling-system economics across open-loop, wet, and dry configurations, factoring in reactor type and site climate. Running these models before committing capital helps facilities avoid over- or under-investing in cooling infrastructure.
Strategy 4: Implement leak detection and predictive maintenance. Aging pipe networks and valves in large facilities are prone to undetected losses over time. Predictive maintenance using vibration sensors, acoustic monitoring, and scheduled valve inspections catches degradation before it becomes a measurable leak.
Strategy 5: Improve metering and billing accuracy. Even a perfectly efficient plant can overpay for water it never actually consumed. Turbulent flow and air entrainment inside large-diameter industrial pipes cause standard meters to over-register usage. Flow conditioning corrects this at the meter itself, a strategy detailed in the next section.
Strategy 6: Establish water use audits and staff accountability. Sustained efficiency needs ownership. Periodic third-party water audits, paired with cross-department accountability between operations, maintenance, and sustainability teams, keep efficiency gains from eroding once initial upgrades are complete.
Correcting Water Meter Over-Reading: A Hidden Cost-Saving Opportunity
Here's something most facility teams never check: is the meter measuring what actually flows through it? Large industrial facilities, including power plants, routinely overpay for water because turbulent flow and air entrainment cause standard meters to over-register consumption.
That over-registration is a measurement error, not a leak. It is created at the meter itself: high-velocity flow through the meter's internal constriction drops local pressure sharply, water flashes to vapour, and because gas occupies far more space than the same mass of liquid, the meter records an inflated volume. Upstream piping, valve closures, and demand spikes set it up by driving the velocity, and entrained air compounds it. All of this happens on the municipal supply connection, before water ever reaches cooling towers or process systems.

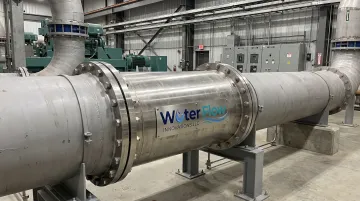

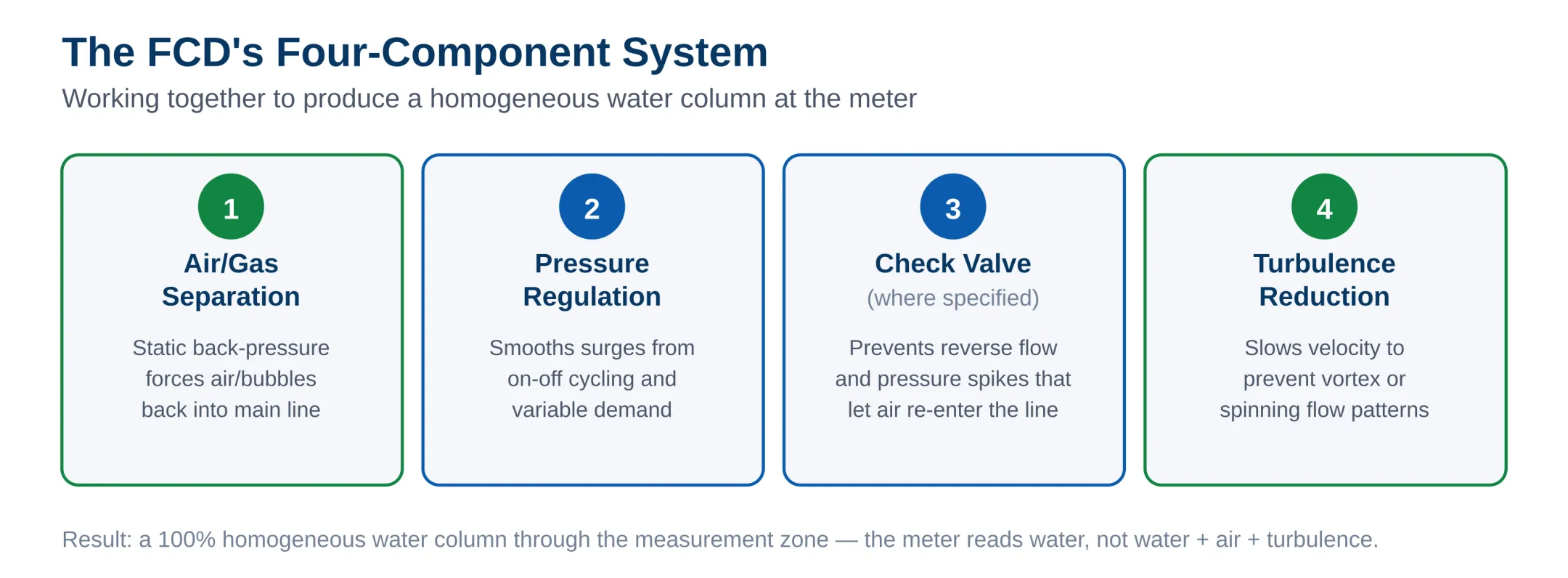

Water Flow Innovation offers a Flow Conditioning Device (FCD) built specifically to correct this. It installs immediately after the water meter, on the consumer side of the connection, and where a pressure-reducing valve is present the preferred order is Water Meter → FCD → PRV → Building. Installing after the PRV is a fallback only, and runs roughly 20–40% less effective. Each unit is certified to IAPMO, NSF, ANSI, CAN 61, KIWA, GMP, and SQF standards and uses a four-component system:
- Air and gas separation — creates static back pressure and strips entrained air that inflates meter readings
- Pressure regulation — stabilises flow at the meter entry point
- Check valve — prevents reverse flow, on configurations where it is specified
- Turbulence elimination — smooths flow patterns for accurate registration
Why This Matters for High-Volume Cooling Operations
Cooling tower makeup water cycling is one of the strongest sources of air entrainment and turbulent flow in any industrial setting. That makes power generation facilities strong candidates for this correction.
Because the FCD sits on the metered municipal supply connection, correcting the reading reduces both water consumption charges and sewer discharge fees at once, since sewer billing typically mirrors metered intake.
The operational profile fits nuclear facility requirements well:
- Installation typically takes about an hour, with a brief water shutoff at the meter connection and no access to internal facility systems, process equipment, or operational areas required
- Negligible pressure loss, with no changes to plant processes, cooling tower delivery pressure, or safety systems
- Custom-fabricated in the USA from 316L stainless steel, with titanium and specialty alloys available, for pipe sizes from ½″ through 12″ as standard and larger custom sizes up to 32″
Documented results across served industries range from 5–30% in average savings, with the highest single documented result at 46%, and about 90% of customers reaching ROI in under 12 months. Savings appear on the next utility bill and serve as verifiable documentation for ESG reporting and sustainability disclosures, with no separate measurement system required.
One important scope note: the FCD applies to metered municipal supply connections, not NPDES-regulated discharge or blowdown lines. It has no effect on discharge chemistry, volumes, or permit conditions. It corrects what is measured coming in, not what is regulated going out. Equally, it is not a general remedy for turbulence elsewhere in the piping system.
Regulatory Compliance and ESG Reporting Considerations
Nuclear facilities juggle two separate regulatory tracks: withdrawal permits under Clean Water Act Section 316(b), and discharge limits on temperature and volume under state-issued NPDES permits. These vary by state and by the classification of the receiving water body, so a compliance strategy that works at one site may not transfer directly to another.
Water is also becoming a bigger piece of ESG disclosure. More than 22,100 businesses disclosed water-security data in 2025 alone, per CDP. Frameworks like GRI 303 and the ISSB electric utilities standard now expect specific withdrawal and consumption figures, not rough estimates.
The strongest position pairs on-the-ground water reductions with ESG-ready documentation:
- Engineering reductions through cooling upgrades, recycling, and leak prevention that lower actual withdrawal and consumption
- Billing-accuracy corrections that produce verifiable, auditable savings data straight from utility bills
- Consumption figures documented tightly enough for NPDES and 316(b) reporting and investor disclosure frameworks
Together, these build a defensible water stewardship record for regulators, investors, and sustainability auditors, backed by documented numbers rather than projections.
Frequently Asked Questions
Do nuclear reactors use a lot of water?
Yes. Nuclear reactors withdraw roughly 44,350 gallons per megawatt-hour with once-through cooling, notably higher than coal or natural gas plants and far above solar or wind. Cooling accounts for most of that volume.
How much water does a nuclear power plant use per day?
It depends heavily on cooling system type. A 1,600 MWe plant using once-through cooling can withdraw about 2.1 billion gallons daily, while a comparable plant with wet recirculating cooling uses closer to 46 million gallons per day.
What is the main use of water in a nuclear power plant?
Condenser cooling accounts for the largest share by far. Primary coolant system makeup water and radioactive waste treatment represent smaller, but still significant, secondary uses.
Can nuclear plants operate during droughts or water shortages?
Prolonged drought and elevated water temperatures can force reactors to curtail output or shut down entirely, as documented at multiple US plants between 2000 and 2015. This risk is a primary driver behind modern water management planning.
What technologies help reduce water waste in nuclear facilities?
Cooling system upgrades, process water recycling, digital modelling tools like the IAEA's WAMP, and metering accuracy solutions all contribute. Combining engineering fixes with billing corrections tends to produce the largest compounded savings.
How can facilities reduce water utility costs without changing how much water they actually use?
Correcting water meter over-reading through certified flow conditioning reduces billed consumption and sewer charges without altering actual usage or plant operations. Savings typically appear on the very next billing cycle.
What is examined before a correction is recommended?
A free analysis reviews your water and sewer bills, meter size, pipe size, line pressure, and PRV configuration to confirm whether the connection is over-reading and what size device it needs. It is completed remotely and carries no commitment.
Can an operator apply this across a whole generating fleet?
Yes. Every station with its own metered municipal connection is a separate installation opportunity, so savings compound across the fleet. Before-and-after billing evidence can be aggregated for corporate benchmarking and capital planning.
