There is a second problem that irrigation creates, and it doesn't show up in the field at all. Every time a zone opens or a pump starts, flow through the utility meter jumps. Those demand surges can make the meter over-register, so the bill shows more water than the property received. It's a problem that is easy to miss, because the irrigation system itself can be running perfectly.
This guide covers what water flow stabilization does in an irrigation network, how zone cycling creates surges at the meter, the billing signs to look for, and how surge-driven over-registration is corrected at the meter.
Key Takeaways
- Water flow stabilization keeps pressure and emitter output steady across irrigation zones; it is a field-hydraulics job
- Each zone start and pump start is also a sudden jump in flow through the utility meter
- During those demand surges, pressure inside the meter drops, gas and vapor form, and the meter counts that volume as water
- Over-registration shows up on the bill, not in the field: water use that climbs faster than irrigated area or operating hours
- A separate issue from stabilization: the Flow Conditioning Device (FCD) installs immediately after the utility meter and corrects what the meter records, with no change to irrigation use
What Is Water Flow Stabilization?

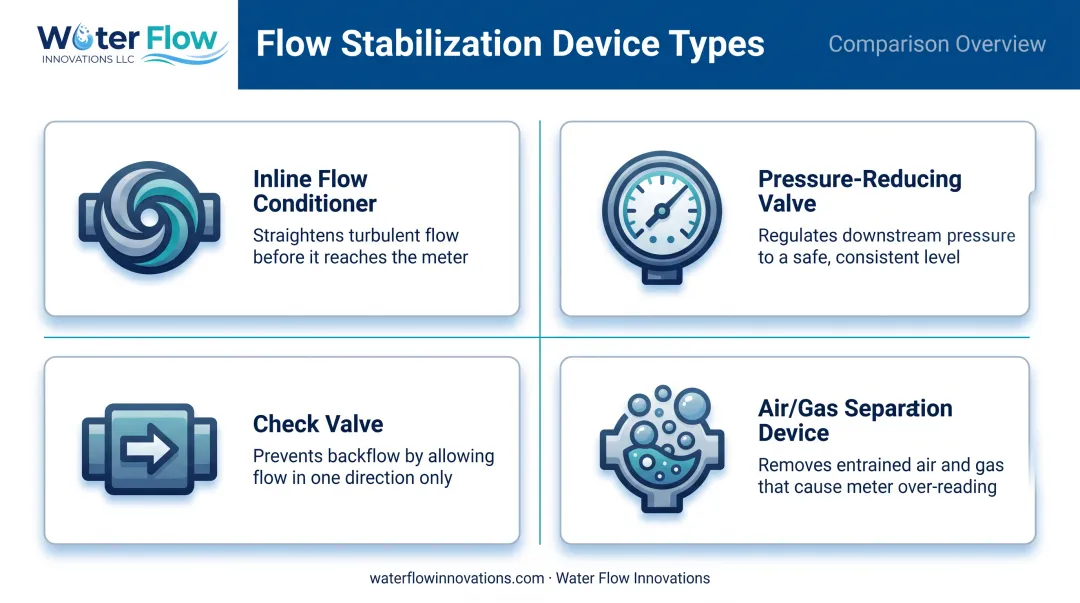

Water flow stabilization is the work of keeping water velocity, pressure, and volume consistent through an irrigation network, even when source conditions change. Municipal lines and pumps rarely deliver perfectly steady pressure, and zone valves open and close all day. Irrigation designers handle this with standard components from irrigation suppliers, such as pressure-regulating valves on the laterals, air release valves at high points, and check valves, along with good pipe layout. Extension research recommends keeping lateral pressure variation under 20% for acceptable distribution uniformity.
These components act on the field side. They shape what reaches the sprinklers and drip lines; they don't change what the utility meter records. Smart controllers are similar: they schedule when water flows, and each scheduled start is still a sudden change in demand at the service.
Where Irrigation Surges Start
Several sources of instability in an irrigation system begin at the source end:
- Pump start-up. A pump coming on spikes demand and pressure momentarily.
- Municipal supply pressure. Utility pressure can sag during neighborhood peak demand hours.
- Valve operation. Zone valves open quickly, and rapid valve closure is identified by UF/IFAS as a leading cause of water hammer in irrigation lines.
In the field, these events are handled with pressure regulation and good layout. At the utility meter, the same events are demand surges.
How Zone Cycling Creates Surges at the Meter
Over-registration happens inside the water meter during demand surges:
- The surge. A zone valve opens, a pump starts, or several zones run at once, so water speeds up through the meter.
- The pressure drop. At high velocity, pressure inside the meter drops. Double the speed of the water and the pressure drop roughly quadruples.
- Gas and vapor form. Dissolved gas comes out of solution and vapor forms inside the meter.
- The meter counts it. The meter registers that volume as water, so the bill shows more than the property received.
Irrigation is burst equipment: each zone calls for a large volume, often at full flow the moment its valve opens, and a multi-zone property repeats that start many times a day. Several conditions add to it:
- Booster or irrigation pump starts, which suddenly pull water through the meter at a high rate
- Several zones, or irrigation and other equipment, starting at once
- Supply-pressure sags: when utility pressure is already low, a smaller velocity jump is enough for gas to come out of solution
- Fast-closing zone and solenoid valves, which send pressure waves back toward the meter
- A service line or meter that is small for today's peak irrigation demand, so water moves faster through it
Staggering zones so they don't start together, and soft-start or variable-speed pump controls, reduce these surges. They rarely remove them completely. The meter is usually accurate; demand surges in the service line cause it to over-register. It's not your meter. It's your pipes.
A Note on the Meter Installation

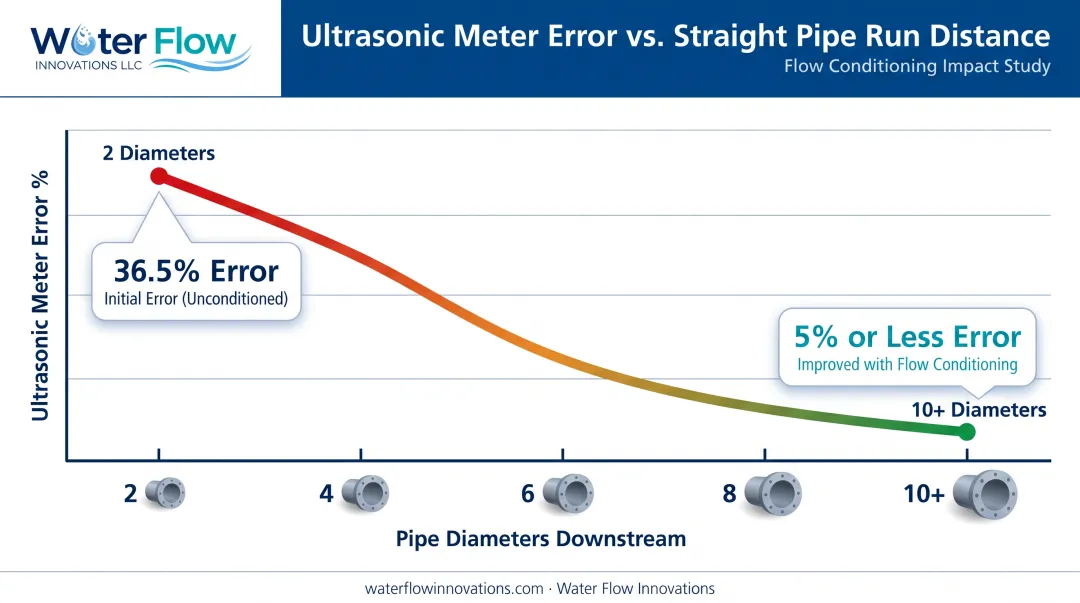

Meter makers call for a straight run of pipe ahead of the meter. Fittings just ahead of the meter, such as elbows, tees, and reducers, create uneven velocity, so water arrives with local high-velocity spots that lower pressure and help gas and vapor form inside the meter during surges. Fittings after the meter matter far less: gas and vapor that form downstream are never counted.
Signs the Irrigation Meter Is Over-Registering
Uneven coverage, dry corners, and pressure swings at sprinkler heads are field-hydraulics symptoms, not signs of over-registration. Look at the bill instead:
- Water use on the bill climbs faster than irrigated area or operating hours, especially at peak times
- Usage doesn't match submeters or irrigation records
- A clean leak check, but the bill stays high
- Where sewer is billed off the same meter, sewer charges rise in step with water
Irrigation water soaks into the ground, yet on a shared meter it is often billed at the sewer rate unless a deduct meter is in place. A deduct meter handles water that never reaches the sewer; it doesn't address over-registration, and the two can be pursued together. A passing meter test doesn't rule over-registration out either: utility accuracy tests use steady, controlled flow on a test bench, which never recreates the surges of zone cycling.
A Separate Issue: Irrigation Meter Over-Registration and the FCD

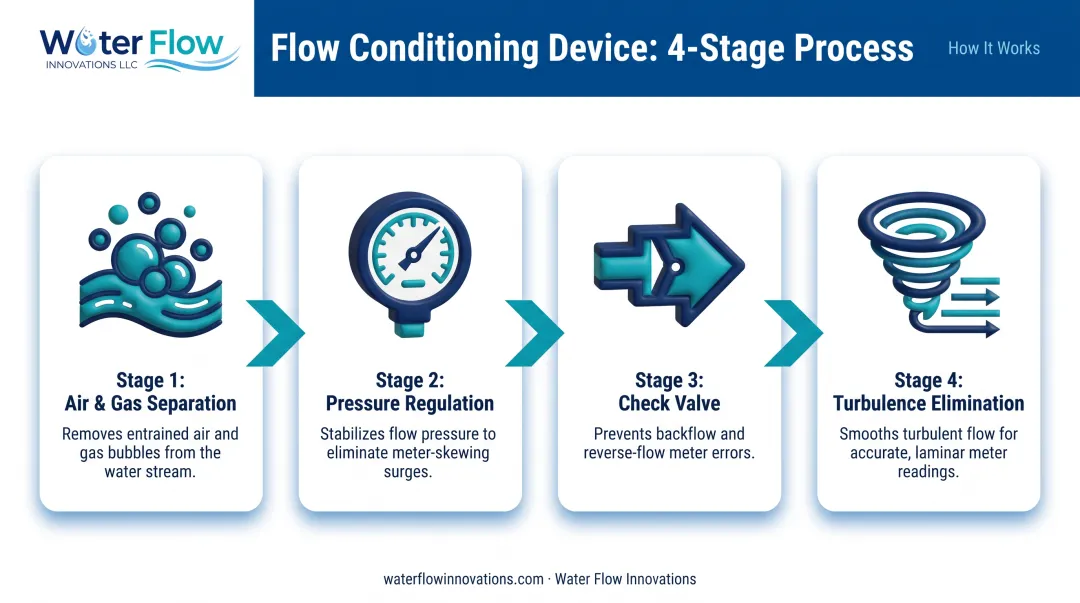

Water flow stabilization works on the field side. The Flow Conditioning Device (FCD) from Water Flow Innovations works only at the meter, and it is not a flow stabilizer. It installs immediately after the utility meter, ahead of the PRV, and creates a small, controlled back-pressure that extends back through the meter. That holds pressure up inside the meter during each zone start and pump start, so far less gas and vapor form and are counted as water.
- Pressure loss is under 0.8 psi across all flow conditions, so irrigation pressure and emitter output see no practical change
- It does not change irrigation use, schedules, or anything downstream of the meter
- A licensed plumber installs it in about 1 hour, with the water off for about 1 hour, between irrigation cycles

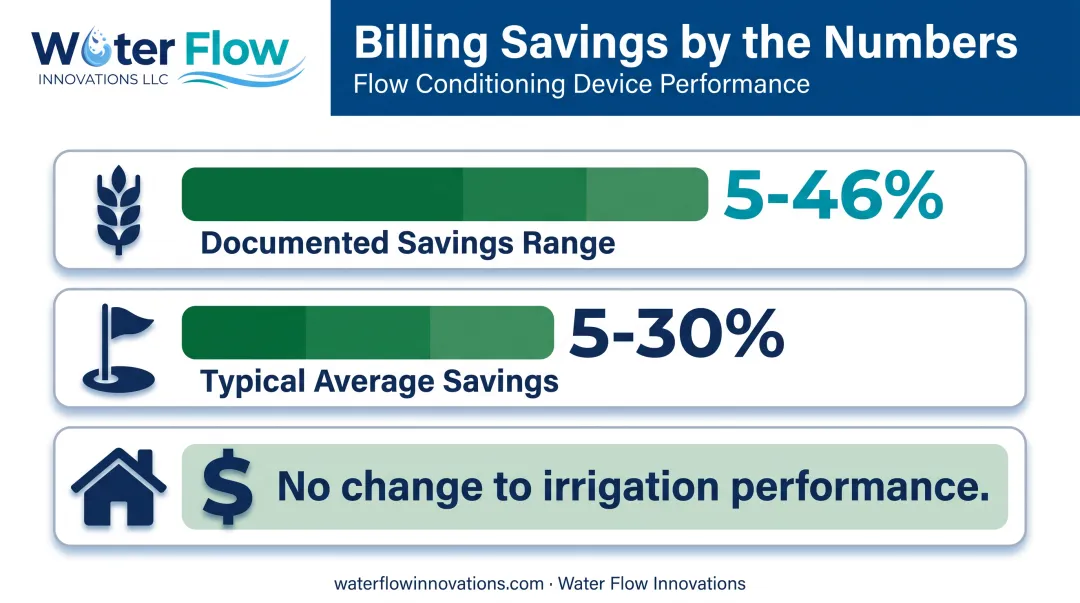

- Documented installations typically show up to a 30% reduction in combined water and sewer costs (46% is the highest documented, a rare case)
Savings start on the next full billing cycle after installation, and 90% of customers reach full ROI in under 12 months.
Where This Applies
Properties that run irrigation zones repeatedly against a utility service meter are the natural candidates: golf courses and country clubs, commercial landscapes and campus grounds, resorts with landscaping irrigation, nurseries and greenhouse operations, and hydroponic grows on utility service.
How to Check Your Property
Water Flow Innovations offers a free, remote water bill review and savings analysis: a look at your water and sewer bills, meter size, and usage pattern for signs of over-registration, with no commitment. On-site visits are billable under company policy. The free savings calculator models your property's 24-hour flow profile, with no contact information required.
Conclusion
Water flow stabilization keeps irrigation zones even, and that work happens in the field with pressure regulation, air release, and good layout. The utility meter is a different story: every zone start and pump start is a demand surge, and during those surges the meter counts gas and vapor as water. If the irrigation bill climbs faster than irrigated area or operating hours, look at when the property uses water, not just how much.
Frequently Asked Questions
Can water flow stabilization reduce my water bill?
Water flow stabilization itself doesn't change what the meter records. Correcting meter over-registration can lower the bill. During demand surges, pressure inside the meter drops and gas and vapor form and are counted as water. A Flow Conditioning Device installed immediately after the meter corrects this, without changing actual water use or irrigation schedules.
Why do irrigation zones affect the utility meter?
Each zone calls for a large volume, often at full flow the moment its valve opens. That sudden jump in flow speeds water up through the meter, pressure inside it drops, and gas and vapor form and are counted as water. A multi-zone property repeats this many times a day.
Does staggering irrigation zones help?
Yes. Staggering zones so several don't start at once, and soft-start pump controls, reduce demand surges at the meter. They rarely remove surges completely; the FCD holds pressure up through the meter during the surges that remain.
Does the FCD affect irrigation pressure or performance?
No practical change. Pressure loss across the FCD is under 0.8 psi across all flow conditions, and it does not change anything downstream of the meter. Pressure regulation and emitter uniformity remain the job of the irrigation system's own components.
Is flow stabilization the same as correcting meter over-registration?
No. Water flow stabilization keeps pressure and output even in the irrigation network. Correcting over-registration is a separate job done at the meter, where the FCD holds pressure up during demand surges so far less gas and vapor form and are counted.
Which irrigation-heavy operations are candidates for a correction?
Golf courses, commercial landscapes and campuses, resorts with landscaping irrigation, nurseries, greenhouse operations, and hydroponic grows: anywhere zone switching and pump starts cycle repeatedly against one utility meter.
Can the work be scheduled between irrigation cycles?
Yes. A licensed plumber installs the FCD immediately after the meter in about 1 hour, with the water off for about 1 hour, so it fits between cycles or into a planned maintenance window.
