This isn't a niche fluid dynamics concern. It's a real operational problem. Flow disturbance after elbows affects pump performance, wears out equipment, and can affect the measurement accuracy of some flow meters installed too close to a bend. That is a measurement-installation issue, separate from the surge-driven over-registration that inflates many water bills.
This article breaks down the causes, consequences, and fixes for flow disturbance after 90-degree elbows, using peer-reviewed research and industry standards.
Key Takeaways
- Swirl and velocity deviations after a 90° elbow often need 3 to 16+ pipe diameters to settle, and full uniformity can remain unresolved past 50D
- Unresolved turbulence drives pressure loss and pump strain, and can affect the accuracy of flow meters installed too close to a bend
- Long-radius elbows and straight-pipe runs reduce turbulence throughout the system, protecting pumps and equipment
- Billing over-registration is a separate, fixable cost on combined water and sewer bills, caused by demand surges at the meter. A certified Flow Conditioning Device corrects it; it does not remove swirl
Common Causes of Flow Disturbance After a 90° Elbow
Flow disturbance refers to the swirl, asymmetric velocity profile, and secondary flow patterns generated when water is forced to change direction abruptly.
A 2020 pump-intake study published in Applied Water Science found swirl angles exceeding 5 degrees and velocity deviations above 10% persisting for 3 to 16 pipe diameters downstream. In some configurations, velocity profiles stayed non-uniform even at 50 diameters.
Sharp/Short-Radius Elbow Geometry
A tight internal corner forces water to separate from the pipe wall. This creates a low-velocity zone on the inner radius and shifts peak velocity toward the outer wall.
Short-radius elbows, with Rc/D below 1.5, are common in space-constrained installs: utility rooms, mechanical closets, and retrofit runs with no room for a sweeping bend.
Multiple Elbows in Close Proximity
Sequential elbows, especially in different planes, compound swirl instead of letting it decay. Instead of one disturbance pattern, you get a composite of overlapping vortices. This is typical in tight mechanical rooms where piping has to turn several times to route around tanks, beams, or other equipment.
High Flow Velocity or Reynolds Number
Higher velocities increase turbulence intensity and extend the distance needed for swirl to decay. A 2024 study in Applied Sciences found Dean vortices persisting to 25 diameters downstream, with full recovery lengths running 10D to 40D depending on flow velocity. This shows up most in high-velocity process lines and pump suction piping.
Insufficient Straight Pipe Run Downstream
Meters, pumps, and valves often end up too close to an elbow because layout leaves no other option. Standards like ANSI/HI 9.8 set straight-pipe benchmarks, but research shows those minimums frequently fail to fully normalise flow.
Effects of Flow Disturbance on Water Systems
Flow disturbance after a 90-degree elbow wears equipment faster. It also raises pumping energy demand and can affect flow-measurement accuracy.

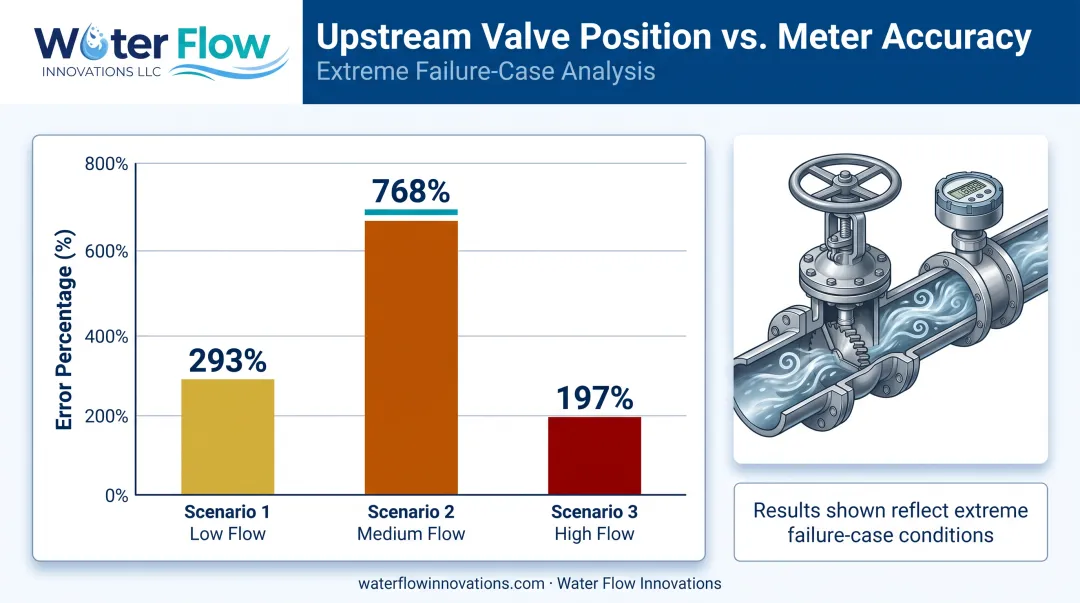

Flow-meter measurement accuracy. Many flow meters are calibrated for smooth, fully developed flow. Swirling, turbulent flow breaks that assumption.
Independent testing has found deviations in both directions by meter type and setup. One study found a Woltmann meter under-registering by as much as 12%. Another found close-coupled magnetic meters off by −3.31% to +0.76%, per research from Utah State University. This is a measurement-installation issue, separate from the surge-driven over-registration the FCD corrects.
Pump performance degradation. Non-uniform velocity at the pump inlet drags efficiency down. In one controlled test with an elbow-disturbed inlet, head fell from 18.2 metres to 16.0 metres and efficiency dropped from 61.4% to 53.2%. Required cavitation allowance rose from 2.52 metres to 3.32 metres.
Other costs stack up quickly:
- Pressure loss — turbulence raises loss through higher K-values or equivalent pipe length, so pumps work harder and energy spend climbs
- Data quality risk — skewed process flow-meter data undermines internal reporting
Pump wear and general pressure loss are system-wide effects of the turbulence itself. They need to be addressed at the source through elbow geometry, pipe routing, and straight-run distance. Billing over-registration is a separate issue, covered in its own section below.
Warning Signs You May Have a Flow Disturbance Problem
These symptoms often show up when turbulence from a 90-degree elbow reaches meters, pumps, or gauges:
- Pump vibration, noise, or early bearing wear near elbow-adjacent installs
- Fluctuating pressure readings just downstream of direction changes
When these appear together, disturbed flow after an elbow is a likely cause. Billing signs are different: water use on the bill that climbs faster than activity at peak times, or that doesn't match submeters, points to surge-driven over-registration, covered separately below.
How to Prevent and Minimize Flow Disturbance After a 90° Elbow
Prevention combines layout design and fitting selection. The approaches below reduce turbulence throughout the piping system, protecting pumps, valves, and fittings.
Use Long-Radius Elbows Instead of Sharp Bends
Long-radius elbows, with Rc/D greater than 1.5, reduce peak swirl angle and shorten the distance flow needs to normalise. In the pump-intake study cited earlier, configurations with larger radius elbows reached acceptable swirl levels within 5D, compared with 16D for short-radius fittings. Best implemented at the design or new-installation stage.

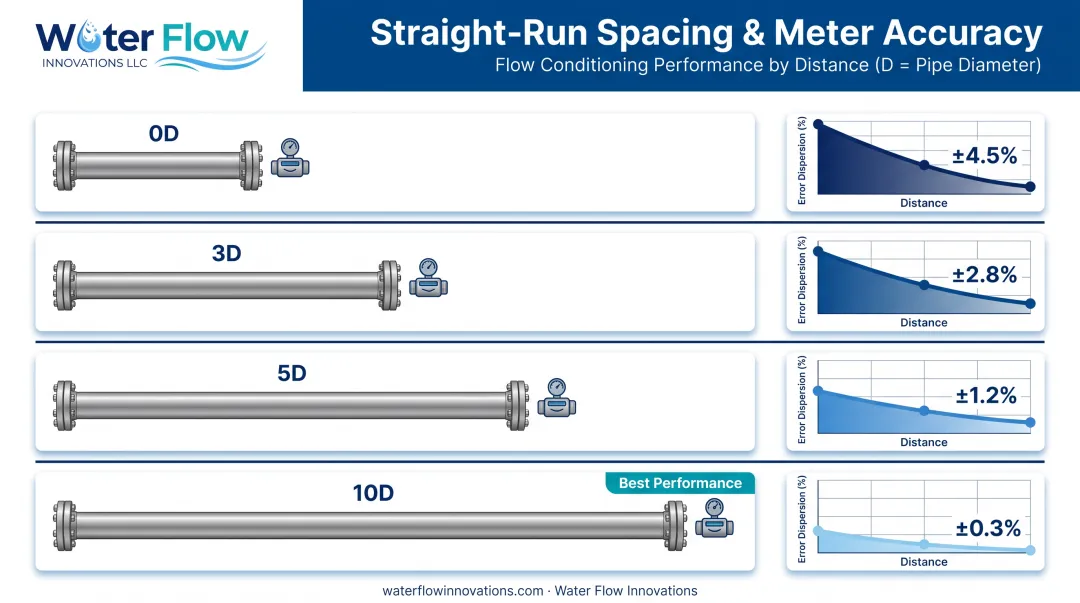

Maximize Straight Pipe Length Before Critical Components
More straight pipe upstream of pumps, meters, or valves gives turbulence more distance to dissipate before it affects equipment. This should be planned during facility design or major retrofit projects, not as an afterthought.
Consider Two 45° Elbows Instead of One 90°
Splitting a turn into two gentler bends can reduce abruptness, though the research here is mixed. ASHRAE's fixed-K method suggests a modest pressure-loss benefit, while DOE's equivalent-length tables suggest a slight penalty. It is configuration-dependent rather than a sure fix, but worth considering when pipe routing has some flexibility.
A Separate Issue: Meter Over-Registration
Billing over-registration happens during demand surges at the utility meter. An elbow just ahead of the meter can add to it, because it creates local high-velocity spots that lower pressure inside the meter during surges, so more gas and vapor form; elbows after the meter matter far less, since gas and vapor that form downstream are never counted. The meter is usually accurate; demand surges in the service line cause it to over-register. The signs are on the bill: water use that climbs faster than occupancy, production, or operating hours, especially at peak times; usage that doesn't match submeters or production records; a clean leak check with a bill that stays high; and sewer charges rising in step with water. The Flow Conditioning Device corrects that reading. It does not remove swirl or turbulence, and pump wear still depends on the layout fixes above.

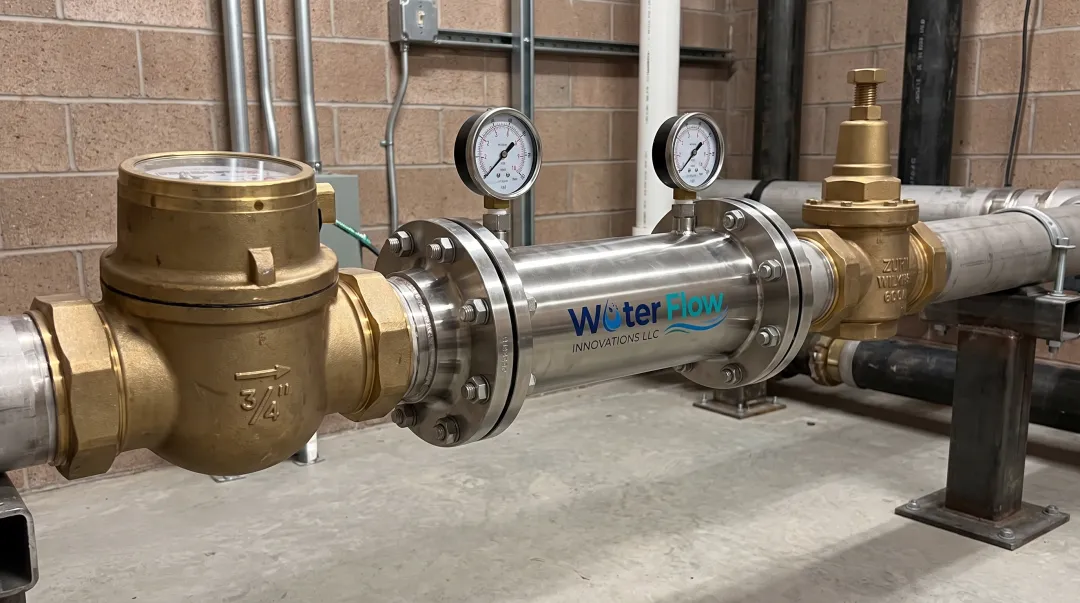

Water Flow Innovations offers a Flow Conditioning Device (FCD) built to correct meter over-registration. It installs immediately after the water meter, on the consumer side of the connection, and where a pressure-reducing valve is present the order is Water Meter → FCD → PRV → Building. Here is how it works:
- The surge — valves open, pumps start, or many fixtures run at once, so water speeds up through the meter
- The pressure drop — pressure inside the meter drops, dissolved gas comes out of solution and vapor forms, and the meter counts that volume as water
- The back-pressure — the FCD creates a small, controlled back-pressure that extends back through the meter
- The correction — pressure holds up during surges, so far less gas and vapor form and are counted; it does not affect swirl from the elbows
The FCD installs in about an hour, with the water off for about an hour at the meter connection and no access to internal facility systems, process equipment, or operational areas required. It is sized to the pipe and meter in commercial and industrial facilities, with under 0.8 psi pressure loss across all flow conditions. It is certified to IAPMO, NSF, ANSI, CAN 61, and KIWA.
Documented installations typically show up to a 30% reduction in combined water and sewer costs (46% is the highest documented, a rare case). Savings start on the next full billing cycle, without changing actual water usage.
Tips for Long-Term Flow Management
A few ongoing habits keep systems running well and catch meter or bill issues early:
- Schedule periodic pressure and flow checks near elbow-heavy runs and compare results with your baseline
- Train staff to spot turbulence wear on pumps, valves, and fittings near elbows
- Watch for bills that climb faster than occupancy, production, or operating hours, a sign of surge-driven over-registration
- Document pipe layouts and fitting types for future retrofits or troubleshooting
- Track monthly water and sewer bills against metered usage trends to catch anomalies early
Conclusion
Flow disturbance after a 90-degree elbow has well-documented, measurable causes rooted in fluid dynamics. Layout choices and fitting selection address the turbulence itself, protecting pumps and equipment throughout the system. Surge-driven meter over-registration is a separate billing issue; the FCD corrects that reading without touching the pipe layout.
Correcting surge-driven over-registration with the FCD typically pays back quickly: 90% of Water Flow Innovations customers reach full ROI in under 12 months.
Frequently Asked Questions
How much pressure is lost in a 90-degree elbow?
Pressure loss depends on the elbow's K-value and flow velocity, calculated via hL = K(v²/2g). Documented K-values for 90-degree elbows range from 0.16 to 1.1, depending on radius and construction. Sharp elbows can equal several feet of straight pipe.
Do 90-degree elbows affect water flow?
Yes. They create turbulence, swirl, and measurable pressure drop. Severity depends on elbow radius, flow velocity, and how many bends are involved.
What are the pros and cons of a 90-degree elbow?
Pros: a compact layout that fits tight mechanical spaces. Cons: more turbulence, higher pressure loss, and greater flow-measurement or equipment risk than long-radius elbows.
How far downstream of a 90-degree elbow should a water meter be installed?
Industry guidance calls for several pipe diameters of straight run, but swirl often lasts well past those minimums. On the utility meter, an elbow just ahead of it can also add to surge-driven over-registration by lowering pressure inside the meter during surges. The FCD corrects that reading, but it is not a substitute for straight run and doesn't remove swirl.
What causes billing over-registration on a water bill?
Billing over-registration is caused by demand surges: water speeds up through the meter, pressure inside it drops, and gas and vapor form and are counted as water, inflating water and sewer charges even when actual use has not changed. Fittings just ahead of the meter, such as a close-coupled elbow, can add to it; elbows elsewhere in the building are a system-design matter. The FCD corrects the reading.
Does adding more elbows increase pressure loss?
Yes. Losses compound with each bend, especially when elbows sit close together, and may require larger pumps or more energy to compensate.
Does installing an FCD require re-piping?
No. The FCD is sized to the site and fitted immediately after the meter in about an hour, with the water off for about an hour and no access to internal facility systems, process equipment, or operational areas required, so the existing elbow layout stays as it is. It is not a substitute for straight-pipe run and does not change flow disturbance; it addresses only surge-driven over-registration at the meter.
What does correcting surge-driven over-registration recover?
Documented installations typically show up to a 30% reduction in combined water and sewer costs (46% is the highest documented, a rare case). Savings start on the next full billing cycle.
