Getting the adjustment right isn't always intuitive. Too tight, and emitters at the end of the line barely drip. Too loose, and you get misting, wasted water, or blown emitters. Many users treat the flow control handle like an on/off switch, which causes more problems than it solves.
This guide walks through how to locate, adjust, and maintain flow control valves so your drip zones perform consistently, season after season.
Key Takeaways
- Flow control valves set pressure and volume per zone, especially with mixed emitter types
- Know your valve type (inline, angle, or all-in-one) and rated flow range before adjusting
- Adjust in small increments, then run the zone briefly to check emitter response
- Over-restricting starves distant emitters; over-opening risks uneven output or damage
- Recheck settings seasonally, especially after winterization or repairs
When Should You Adjust Flow Control Valves?
Adjustment becomes necessary in a few specific situations:
- Uneven emitter output across a zone, where near emitters flow fine but distant ones lag
- Pressure above the emitter's rated range: drip systems typically need 10-30 psi, while supply lines often run 40-100 psi and need reduction (Utah State University Extension)
- Mixed zones combining drip emitters with sprays or rotors on the same valve, since each component has different pressure needs
One common mistake: using the flow control handle as a primary shutoff instead of a fine-tuning tool. It's built for incremental adjustment and emergency override, not routine on/off cycling.

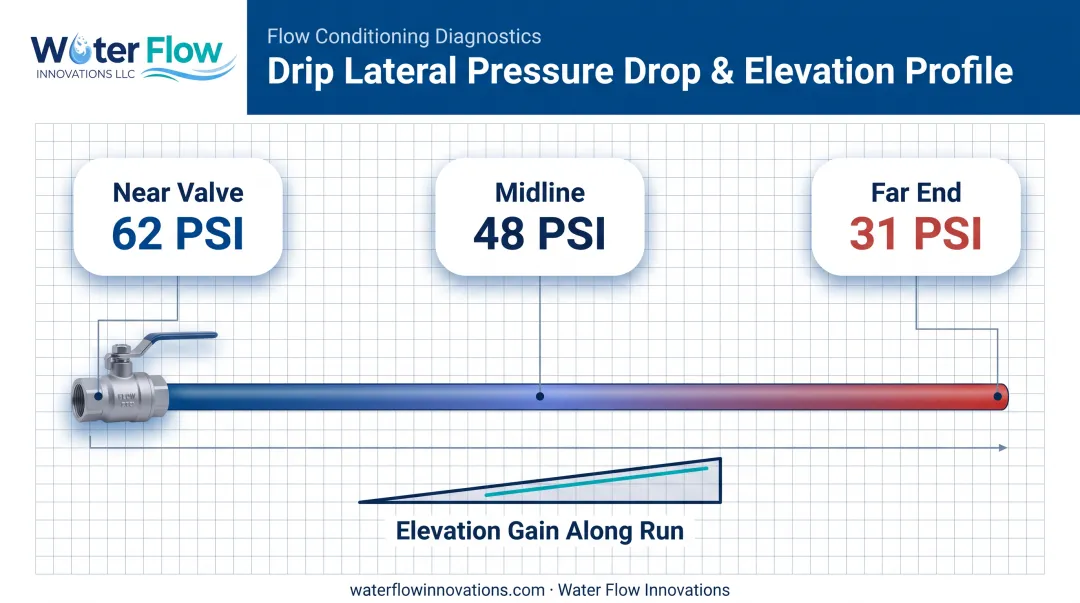

Scale matters too. Larger agricultural systems with long laterals need more frequent pressure checks than small beds. Pressure drop over distance, plus elevation changes, can create real discrepancies between the valve and the far end of the line.
What You Need Before Adjusting
Before you touch a single knob, gather the right tools. Skipping this step is the fastest way to end up guessing.
- A pressure gauge — measures upstream and downstream PSI at the valve (liquid-filled gauges hold steadier readings, per Michigan State University Extension)
- The manufacturer's flow chart for your specific valve model — head-loss curves differ by valve size and family, so don't use a chart from another model
- Basic hand tools — a screwdriver or wrench, depending on valve design
- A bucket and stopwatch (optional but useful) — a simple way to establish baseline zone flow before making changes
Identify the exact valve, its pressure range, its flow direction, and any manual bleed feature from the nameplate before adjusting anything. Working from the wrong specs undermines everything that follows.
How to Adjust Flow Control Valves (Step-by-Step)
Adjustment follows a defined sequence. Rushing it or skipping steps usually leads to under- or over-pressurized zones that take multiple visits to fix.
Locating and Preparing the Valve
The flow control knob or stem is usually at the top of the valve body. Before making any changes, take a baseline pressure reading with the valve in its current position.
A common error: adjusting the valve while the zone is off. This gives a false sense of restriction, since no water is actually moving through the diaphragm. Always adjust with the zone running.
Making the Initial Adjustment
Turning the stem restricts flow by limiting diaphragm stroke; opening it increases flow toward the valve's maximum capacity. The exact mechanism varies by valve family. Some, like certain Netafim models, use a three-position selector (closed, open, automatic) rather than a simple turn-to-restrict stem.

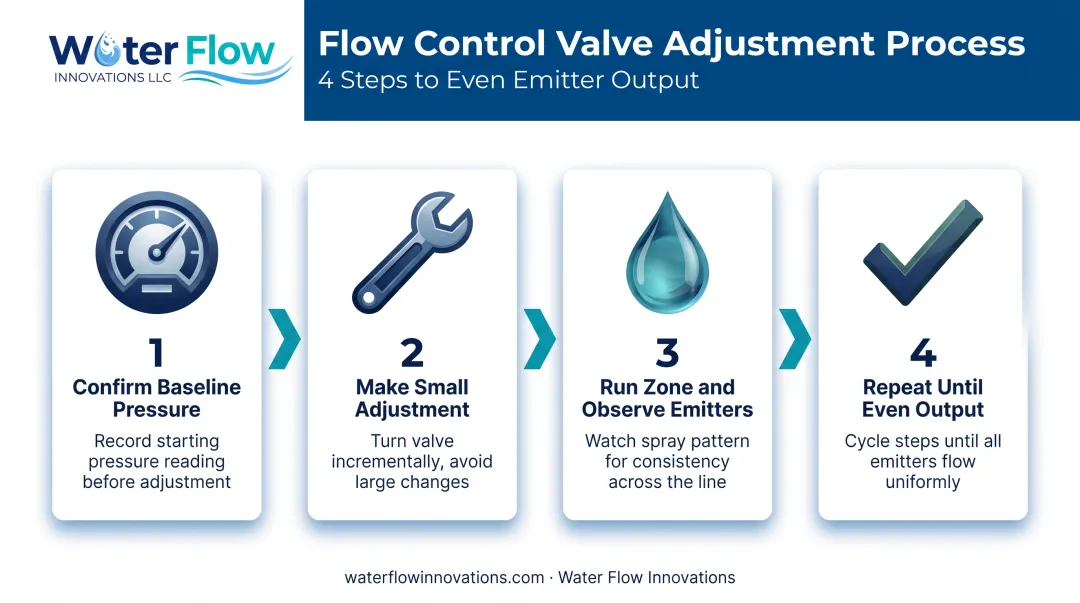

Practical approach:
- Confirm the valve's starting position and note the baseline pressure
- Make a small adjustment
- Run the zone briefly and observe emitter response at multiple points along the line
- Repeat until output is even from the first emitter to the last
Don't rely on turn-count alone. Verify results with an actual pressure reading downstream.
Fine-Tuning for Zone Performance

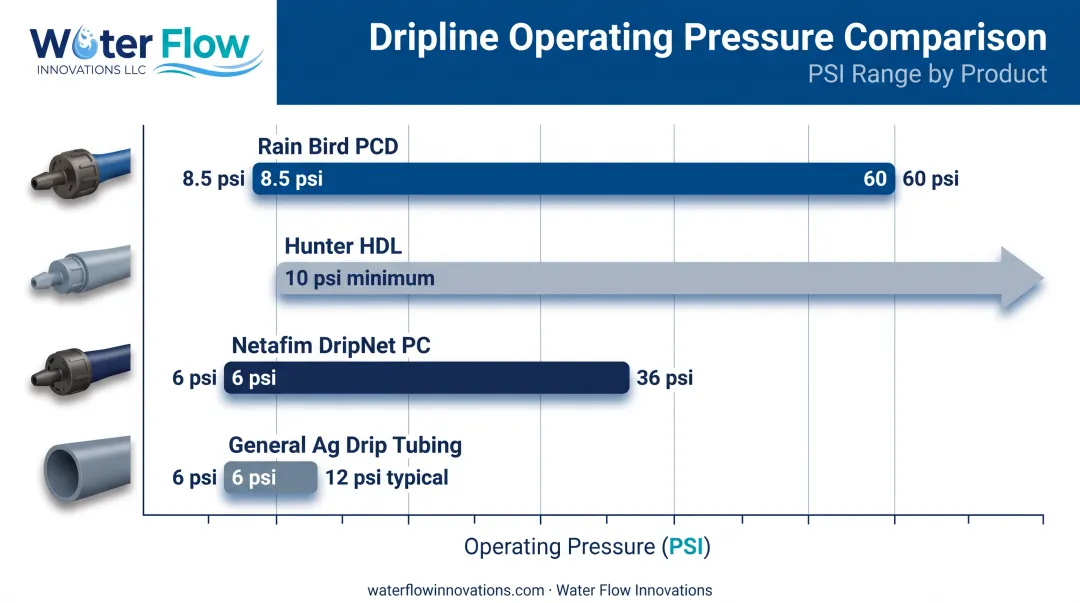

Use your pressure gauge downstream of the valve to confirm PSI falls within your emitter manufacturer's specified range. This range varies more than most people expect:
| Product Type | Operating Pressure |
|---|---|
| Rain Bird PCD dripline | 8.5-60 psi |
| Hunter HDL dripline | 10 psi minimum |
| Netafim DripNet PC | 6-36 psi |
| General ag drip tubing | 6-12 psi typical |
There's no universal acceptable pressure-loss percentage across all valve models. Read the head-loss curve for your exact valve size and model, then confirm remaining downstream pressure still meets your emitter's requirement.
Monitoring After Adjustment
Watch the next few irrigation cycles closely for:
- Weak flow or dripping at the far end of the line
- Valves that don't fully close when commanded
- Emitters near the valve flowing normally while distant ones lag, a sign pressure is still off
Drip-system pressure trouble is often less visible than sprinkler trouble. It can show up subtly as uneven crop growth along a lateral or a pattern that tracks with elevation changes, according to Utah State University Extension. Record inlet pressure, outlet pressure, and pressure near the end of representative laterals for comparison.
Locking In and Documenting the Setting
Once the setting looks right across multiple checks, secure it:
- Tighten any lock nuts present on the valve
- Note the exact setting, date, and pressure readings in a maintenance log
Skipping documentation is why so many operators repeat the same trial-and-error process every single season. A five-minute log entry saves hours next spring.
Best Practices for Adjusting Flow Control Valves Effectively
Check settings seasonally, especially after winterization or line repairs. Both can shift pressure dynamics enough to throw off a previously correct adjustment.

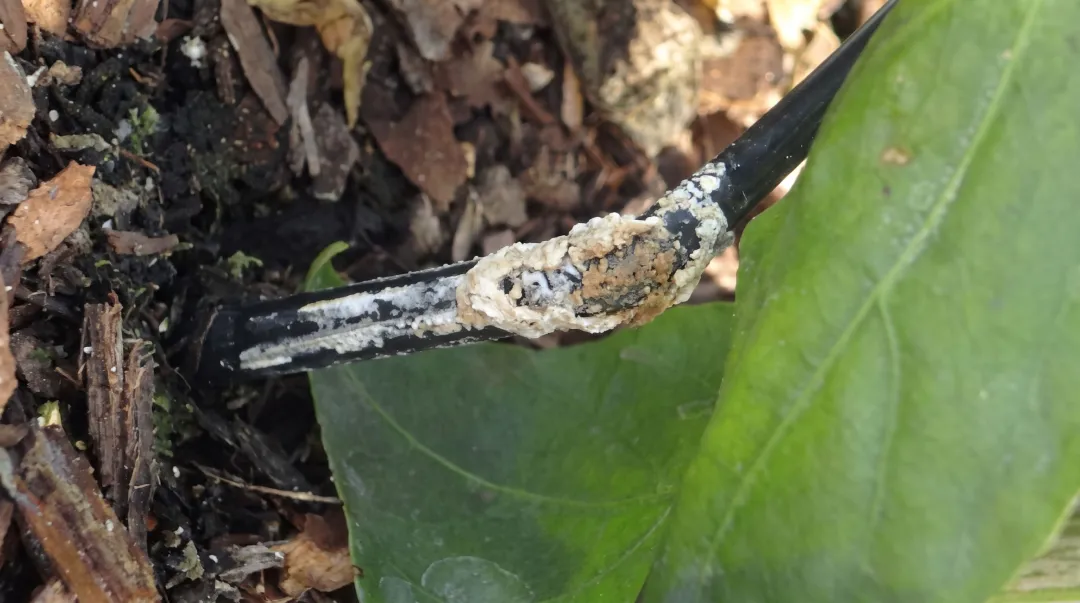

Pair adjustments with clean filtration. Debris buildup mimics poor valve adjustment almost perfectly. Sand, iron, manganese, and organic matter can clog emitters and reduce flow just as effectively as a misadjusted valve. Before you adjust further, rule out these common causes:
- Comparing inlet and outlet pressure
- Inspecting for kinked or damaged laterals
- Flushing laterals to clear sediment
- Checking representative emitter discharge
- Only then reassessing the valve setting
Once a dripper clogs, restoring its flow can be hard to reverse. Filtration and flushing prevent that problem more reliably than any valve tweak after the fact.
Even when valves and emitters are dialed in, larger agricultural and commercial systems can still overpay. Water meters themselves can over-read when turbulence or air entrainment hits the meter upstream, so the bill no longer matches real irrigation use.
Water Flow Innovation builds a certified Flow Conditioning Device (FCD) that installs after the main meter and corrects that over-reading without changing valve settings or system pressure. Agricultural operations typically see 5–30% reductions in water and sewer costs, with a highest documented result of 46%.
Don't let flow control become a crutch. If a zone consistently fights you no matter how you adjust the valve, the real fix is often proper zone design or a correctly sized valve, not endless fine-tuning.
Frequently Asked Questions
How do I control water flow in drip irrigation?
Control flow with the valve's flow control knob or stem, pressure regulators, and correctly sized emitters. Base adjustments on your zone's pressure and each emitter's rated flow requirements.
What is the purpose of a flow control valve?
It regulates water volume and pressure moving through a zone, protecting emitters from damage. It also serves as a manual override for emergency shutoff when needed.
Can I use a flow control valve to turn off irrigation completely?
It can restrict flow almost entirely, but it's designed for fine-tuning, not as a primary shutoff. Use a dedicated shutoff valve for routine on/off control instead.
How often should flow control valves be checked or readjusted?
Check seasonally, particularly after winterization or any repairs that involve cutting into lines. Larger systems with long laterals benefit from more frequent checks.
Why is my drip zone misting instead of dripping evenly?
This usually points to excess pressure at the emitters. Restricting the flow control valve slightly, then rechecking with a pressure gauge, typically resolves it.
Does adjusting the flow control valve affect water bills?
It affects how efficiently water is used, but bill accuracy also depends on whether your meter is reading correctly. Water Flow Innovation's FCD corrects meter over-reading from turbulent flow, separate from valve adjustments.
Which irrigated operations see the largest metering correction?
Agriculture and irrigation operations, golf courses, hydroponic and cannabis grows, large properties and estates, HOAs, and vacation rental communities, where zone switching and pump starts cycle repeatedly against one meter.
How much does correcting the meter save on an irrigated site?
Documented installations average a 5–30% reduction in combined water and sewer charges, with a highest documented single result of 46%, without altering zone schedules or emitter output.
