Engineers call this secondary flow. Most facility managers have never heard the term, yet it quietly drives energy losses in turbines, shapes river bends, and distorts what your water meter thinks it's measuring. In turbine blade rows, secondary flow can account for 30-50% of total aerodynamic loss, according to a 2017 peer-reviewed review in the International Journal of Heat and Fluid Flow.
This post breaks down what secondary flow actually is, why it forms, where it shows up in nature and machinery, and — critically — how it affects water flow measurement accuracy in commercial buildings.
Key Takeaways
- Secondary flow is a weaker, perpendicular motion layered on top of the dominant flow direction
- Pressure gradients, boundary layer friction, curvature, and rotational forces drive it
- It shows up in rivers, turbines, tornadoes, and water pipes
- In piping systems, turbulence and air entrainment can make meters over-read and inflate utility bills
What Is Secondary Flow in Fluid Dynamics
Secondary flow is fluid motion that occurs perpendicular to the main flow direction, riding on top of the dominant (primary) flow pattern. Engineers describe it as the time-averaged transverse velocity components existing in the plane perpendicular to the primary flow axis, according to a ScienceDirect engineering reference.
Engineers separate complex three-dimensional motion with flow decomposition. Primary flow is the dominant, streamwise motion: the main current pushing water down a pipe. Secondary flow is the cross-stream components superimposed on that main motion.
Where the Cross-Currents Come From
Boundary layers are a primary driver. Near any wall, fluid loses momentum to friction. That low-momentum layer behaves differently than the fast-moving core, and the mismatch generates cross-currents.
Pressure gradients do the same job from another angle. Curved surfaces or obstacles push fluid sideways, spinning up vortices as the flow negotiates the geometry.
Secondary flow is usually far weaker than primary flow, often no more than 2–3% of the characteristic velocity, per a 2021 Fluid Dynamics review. That small fraction still drives outsized energy loss and mixing effects.
Primary Flow vs. Secondary Flow: What's the Difference
What is the difference between primary and secondary flow?
Primary flow is the intended, dominant direction of travel: a river's current, or water moving through a pipe. Secondary flow is the incidental cross-motion layered on top, caused by friction, curvature, or rotation.
Picture canoeing down a river. Your forward momentum is the primary flow. Near the riverbed and banks, a slower, rotating motion tugs sediment and debris sideways. That secondary flow works beneath the current you actually feel.
In pipes and ducts, the same split shows up at bends and fittings: bulk flow follows the pipe axis, while secondary currents swirl across the cross-section and distort the velocity profile.
What is secondary circulation?
In rotating systems like the atmosphere or ocean, this cross-motion gets a different name: secondary circulation. The American Meteorological Society defines it as organized flow superimposed on a larger-scale mean circulation, such as atmospheric roll vortices, per the AMS Glossary of Meteorology.
NOAA researchers mapped one example at the northern front of the equatorial Pacific cold tongue. Surface water dives beneath a tilted front while subsurface water rises and returns at the surface. Trade winds and pressure imbalances drive that coupled overturning pattern.
How Secondary Flow Forms: The Underlying Mechanics
Four mechanisms drive nearly all secondary flow:
- Pressure differentials: curved surfaces create sideways pressure gradients
- Boundary layer drag: friction slows near-wall fluid, creating velocity mismatches
- Centrifugal/Coriolis forces: rotation pushes fluid outward or deflects it
- Geometric curvature: bends and passages force fluid into cross-motion

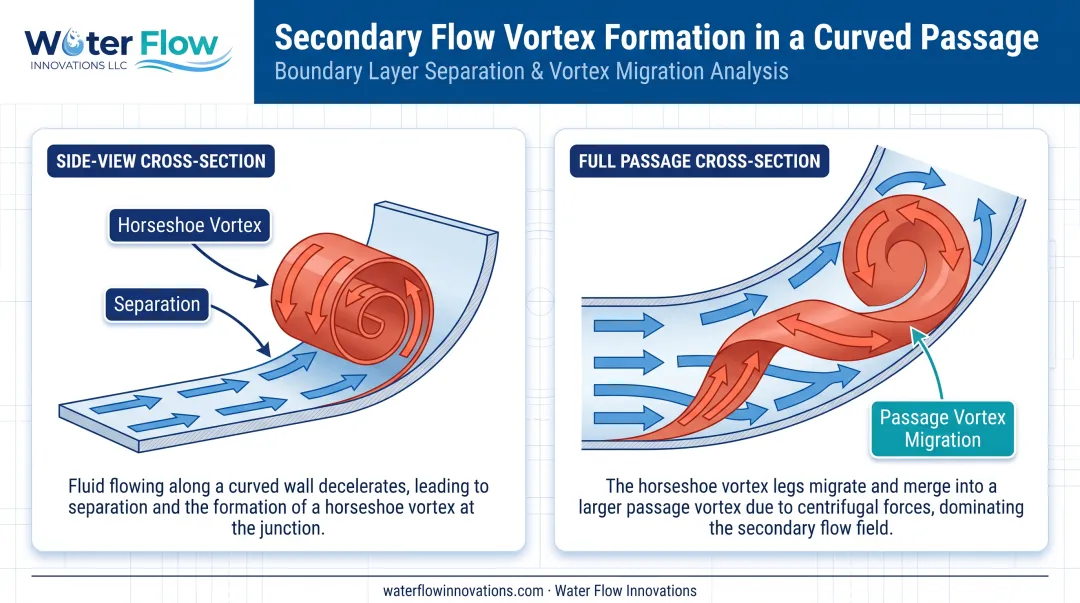

The Horseshoe Vortex and Passage Vortex
In curved blade passages or pipe bends, incoming boundary layer fluid separates at the leading edge and rolls up into a horseshoe vortex. NASA's flow visualization studies documented this directly: low-momentum fluid near the wall forms a tight vortex core, while fluid farther out entrains into that core.
That vortex doesn't stay put. One leg of it sweeps across the passage and joins the passage vortex, a larger secondary structure that persists downstream.
Corner Vortices and Turbulence
Where the passage vortex meets a blade's suction surface near the trailing edge, a corner vortex forms. Add turbulence and air entrainment into the mix inside confined piping systems, and these secondary structures intensify further, disrupting what would otherwise be a smooth flow profile.

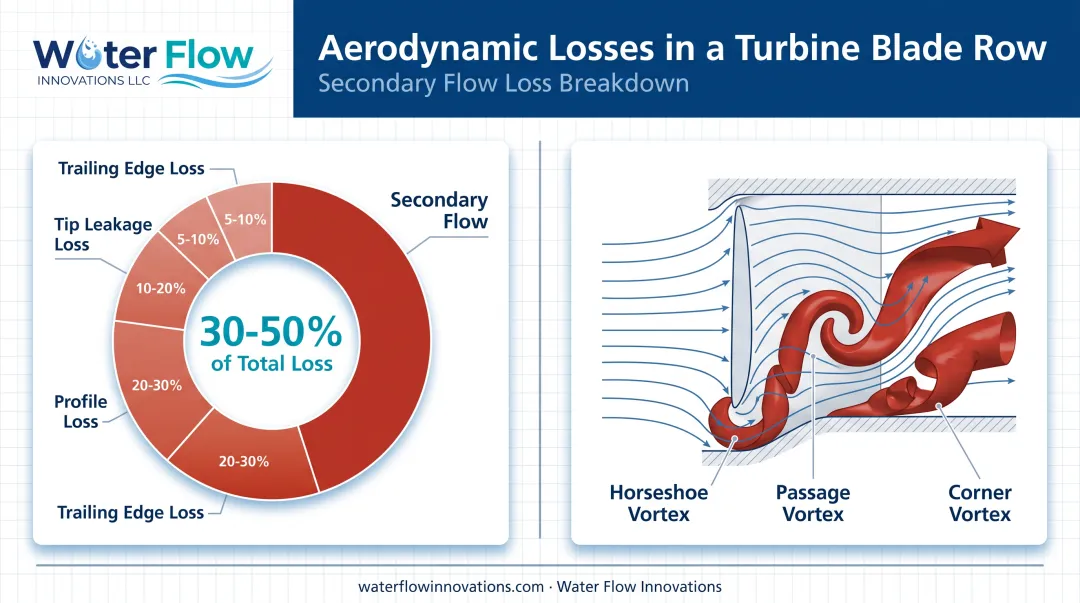

In low-aspect-ratio turbine blade rows, secondary-flow losses can account for 30-50% of total aerodynamic loss in a single blade row. The same cross-flow structures matter in confined piping, where they distort velocity profiles and degrade metering and system efficiency.
Real-World Examples of Secondary Flow
Rivers and Meandering Channels
Near a riverbed, secondary flow sweeps sediment toward the inner bank of a bend. Over years, this reshapes the channel itself. A 2017 study in Geophysical Research Letters confirmed that helical flow patterns strongly influence erosion and deposition, steering how meanders evolve.
Atmospheric Systems
Near ground level, wind doesn't follow pressure gradients perfectly. Surface drag slows the wind, throwing off the balance between pressure-gradient force and rotational forces. The result: wind crosses isobars, flowing into low-pressure systems and out of high-pressure ones, according to NOAA's National Weather Service.
The Tea Leaf Paradox
Stir a cup of tea and stop. The leaves collect in the center of the cup, not the edges — seemingly against centrifugal logic.
Viscous friction at the stationary base creates a pressure imbalance. That imbalance drives a secondary flow inward along the bottom, pulling leaves toward the middle. James Thomson first examined the effect in 1857; it is often (incorrectly) credited to Einstein.
Applications in Engineering and Water Systems
Turbomachinery and Compressors
Turbine designers spend enormous effort minimizing secondary flow losses. With horseshoe and passage vortices eating into aerodynamic efficiency, CFD modeling has become standard practice for predicting and reducing these losses before a blade ever gets manufactured.
Piping and Metering Systems
The same secondary-flow mechanisms show up in commercial and industrial piping—and they show up on the utility bill.

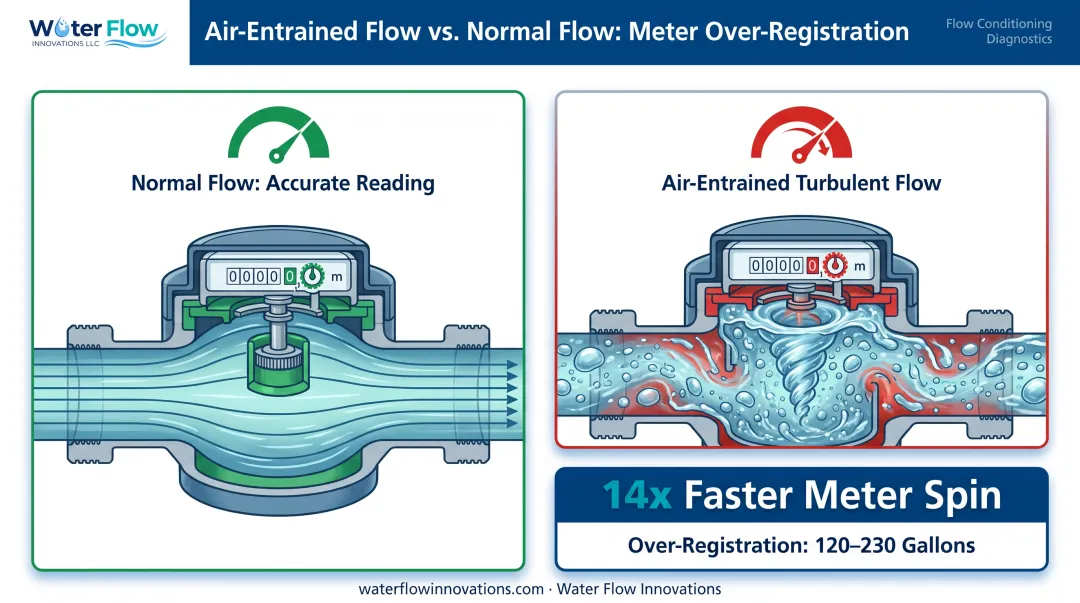

Turbulent secondary flow and entrained air disrupt the smooth velocity profile a meter expects to see. Water meters are calibrated assuming a stable, fully developed flow profile. When turbulence or air bubbles distort that profile:
- Meters register spinning or vortex motion as extra volume
- Air bubbles are counted as if they were water
- Distorted profiles produce over-reading, so you pay for water you never received
This isn't a hypothetical. A 2022 peer-reviewed study published in AQUA found that entrained air during pipe refilling drove water meters to spin at roughly 14 times the actual water velocity, producing 0.45–0.86 cubic meters (about 120–230 gallons) of over-registration per event.
How Water Flow Innovation Addresses This

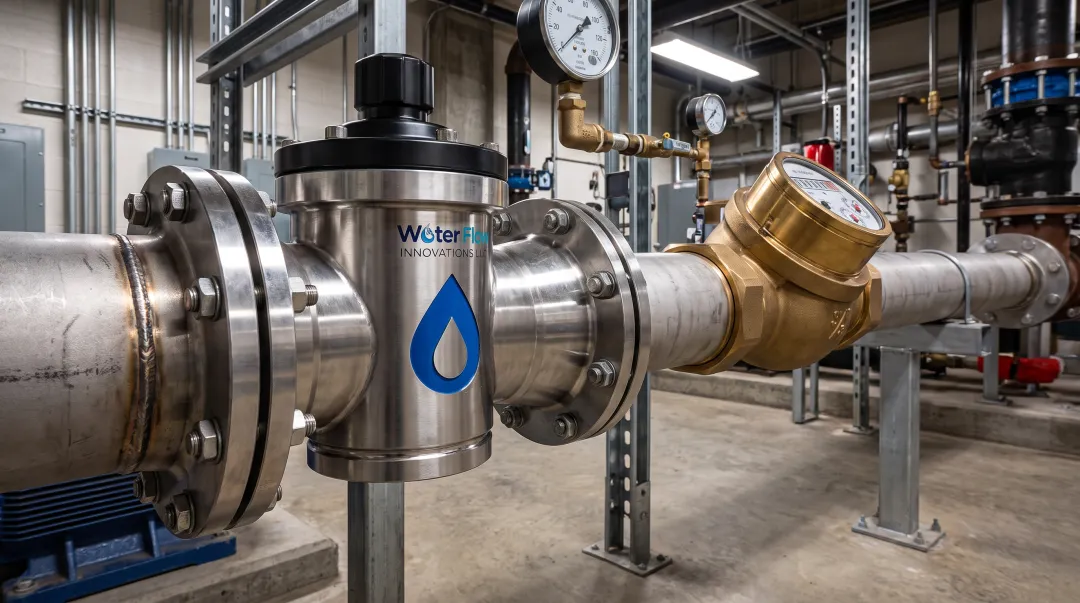

We provide the Flow Conditioning Device (FCD) to correct exactly this problem. It's installed immediately after the water meter and uses a four-component system:
- Air & gas separation — removes bubbles in the measurement zone, establishing a homogeneous water column
- Pressure regulation — smooths out surges that can reintroduce air
- Check valve — blocks reverse flow that contributes to air re-entry
- Turbulence elimination — slows velocity enough to prevent vortex formation at the meter
The FCD is custom-fabricated in 316L stainless steel for pipe sizes from 1/2" to 12" (DN20-DN500), and it's certified to IAPMO, NSF, ANSI, CAN 61, KIWA, GMP, and SQF for material safety and manufacturing quality.
Tangible impact: Correcting these flow disturbances typically reduces combined water and sewer bills by 5-30%, with the highest documented result at 46%. Savings show up on the very next billing cycle, and 90% of customers reach full ROI within 12 months — with no operational disruption and negligible pressure loss.
Industries feeling this silently inflated cost extend well beyond manufacturing:
- Hospitality — hotels and resorts running continuous water demand
- Healthcare — hospitals with variable process and sterilization flows
- Municipal facilities — schools, correctional facilities, and public buildings
- Multifamily housing — high-rise buildings with fluctuating peak demand
Frequently Asked Questions
What is the difference between primary and secondary flow?
Primary flow is the dominant, intended direction of travel, like water moving through a pipe. Secondary flow is the weaker, perpendicular motion layered on top, caused by friction, curvature, or rotation.
What is secondary circulation?
Secondary circulation is the term used for cross-motion in rotating systems, like the atmosphere or ocean, where pressure gradients and rotational forces are out of balance. It's secondary flow by another name, used for large-scale rotating contexts.
Why does secondary flow cause energy loss in machinery?
Cross-flow motion disrupts the ideal flow field engineers design for, increasing turbulence. That extra turbulence dissipates energy that would otherwise contribute to useful mechanical work.
Can secondary flow affect water meter accuracy?
Yes. Turbulence and air entrainment from secondary flow patterns distort the flow profile at the meter, which can cause the meter to over-read actual water consumption.
How do engineers reduce secondary flow losses?
Common approaches include blade redesign, CFD-based optimization, and flow conditioning devices. In piping systems, a flow conditioning device (FCD) specifically targets turbulence and air entrainment near the meter.
Is secondary flow always undesirable?
Not always. It causes real losses in engineered systems like turbines and pipes, but it also drives natural processes: river meandering, storm circulation, even the tea leaf paradox in your morning cup.
What does neutralizing secondary flow at the meter return?
Documented installations average a 5–30% reduction in combined water and sewer charges, with a highest documented single result of 46%, appearing on the first bill after installation.
Which facility types carry the most secondary-flow risk?
Sites with complex pipework and constant demand change: manufacturing plants, chemical manufacturing, breweries and distilleries, dairy and food and beverage processing, hotels, hospitals, data centers, and car and truck washes.
