The FCD installs immediately after the utility meter, ahead of the pressure-reducing valve (PRV). It creates a small, controlled back-pressure that extends back through the meter, holding pressure up during surges so far less gas and vapor form and are counted. This page explains what facility teams can expect during installation and how to evaluate the result. A licensed plumber or mechanical contractor performs the work in about 1 hour, with the water off for about 1 hour.
Key Takeaways
- Demand surges can lower pressure inside the meter, causing gas and vapor to form and be counted as water
- The FCD installs immediately after the water meter, ahead of the PRV, where its controlled back-pressure reaches the meter
- A licensed plumber or mechanical contractor completes installation in about 1 hour, with the water off for about 1 hour
- The FCD corrects the meter reading; it does not change water use or anything downstream of the meter
- Compare full billing cycles after installation with the facility baseline; savings start on the next full billing cycle
Planning a Flow Conditioning Device Installation
Installation planning covers the meter and pipe survey, the location immediately after the meter, a scheduled water shutoff, and post-installation checks. WFI sizes the FCD to the facility's meter and pipe. The licensed installer confirms the connection details and local requirements before work starts. Allow about 1 hour for the installation and about 1 hour with the water off.
Prerequisites and Safety Considerations
Before scheduling work, confirm the site is ready:
- Accessible shut-off valve — the installer needs a safe way to isolate the service line
- Adequate clearance around the meter for the technician to work safely
- Dry working environment, free of standing water or active leaks
The installer checks the pipe diameter, meter type, available space, and operating conditions against the selected device. Water Flow Innovations sizes each FCD to the facility's pipe and meter before installation.
FCD certifications include IAPMO, NSF, ANSI, CAN 61, and KIWA. Confirm installation and any applicable compliance requirements with your facility team.
If the service line has an active leak, the isolation point is unclear, or other equipment occupies the space immediately after the meter, resolve that condition with the licensed installer before scheduling the work. The FCD is never installed on a fire suppression or fire service line.
Installer and Facility Preparation
Ask the installer to confirm the planned shutoff window, the meter and pipe details, access to the service line, and the device configuration. Facility staff can provide recent water and sewer bills, occupancy or production records, and any submeter readings for a before-and-after comparison. The installer determines the appropriate fittings and method for the actual site; this page is not a substitute for the device instructions or local installation requirements.

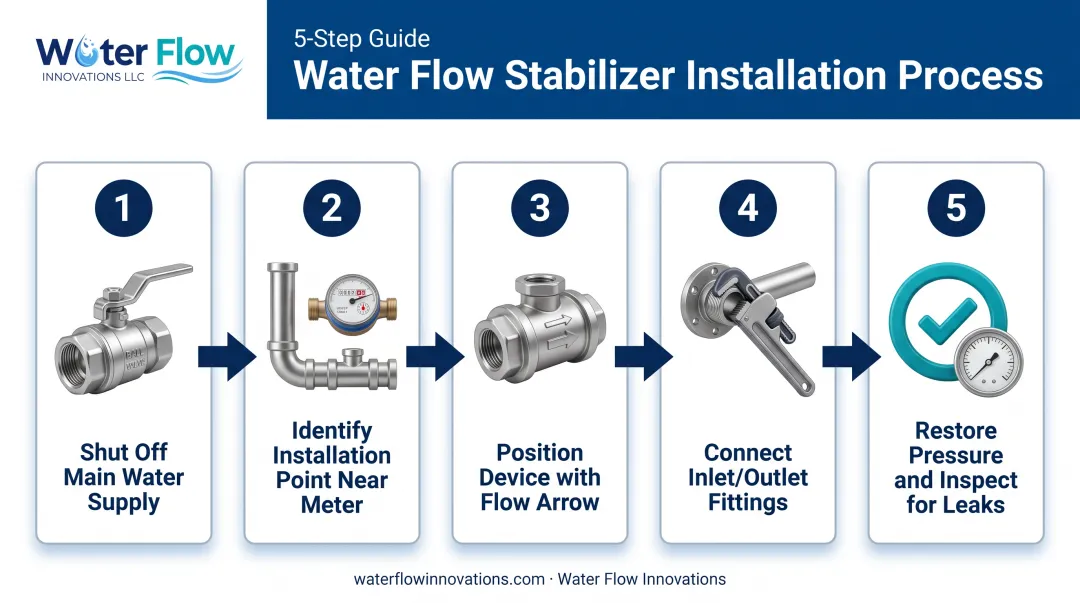

What Happens During FCD Installation
The licensed installer follows the device instructions and site requirements. For facility planning, the work has five stages:
- Isolate the service line during the agreed water-off window.
- Confirm the location immediately after the utility meter and ahead of the PRV and backflow preventer.
- Fit the selected FCD according to the manufacturer's instructions and the site's pipe configuration.
- Restore service and inspect the installation for leaks and normal operation.
- Record the installation date and baseline so full billing cycles can be compared afterward.
If your facility uses a pressure-reducing valve, the sequence is Water Meter → FCD → PRV → Backflow Preventer → Building, so the FCD's small, controlled back-pressure extends back through the meter instead of being absorbed by the pressure regulation stage.

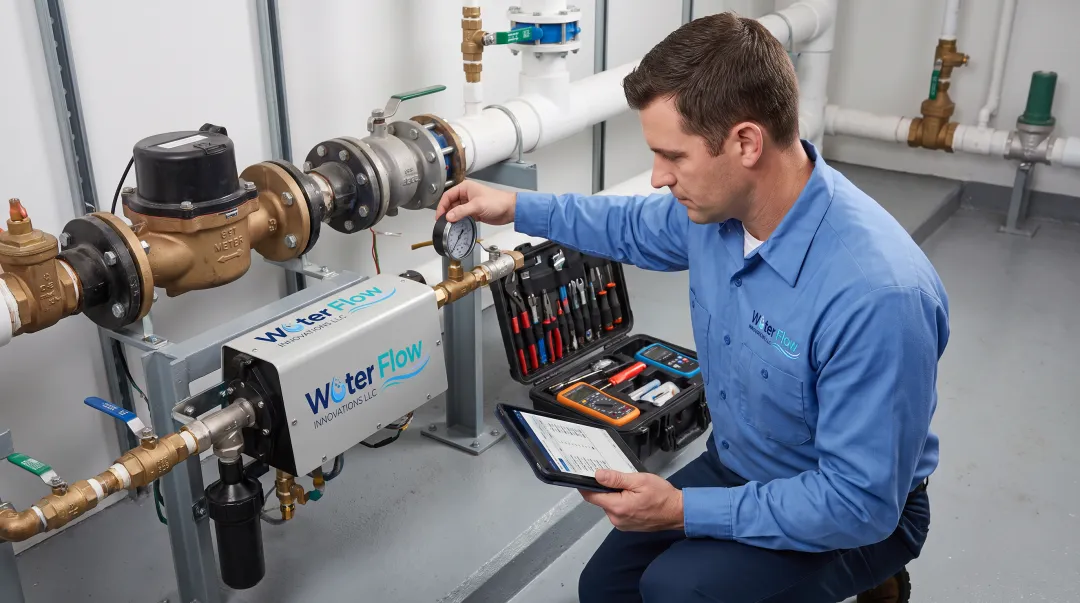

Post-Installation Checks and Validation
Once service is restored, the installer checks the work and the facility records its billing baseline:
Installation checks:
- Inspect the new connections for leaks
- Confirm the FCD is immediately after the meter, ahead of the PRV, and the service line is operating normally
- Record the installation date, meter reading, and any relevant submeter readings
Pressure loss across the FCD is under 0.8 psi across all flow conditions, so downstream operations see no practical change. The device does not reduce water use, treat water, or fix building pressure problems.
Billing results require a full cycle. Savings start on the next full billing cycle. Compare billed water and sewer volume with occupancy, production, operating hours, and submeters over comparable full cycles. If the bill stays high after a clean leak check, WFI can review whether meter over-registration is present.
When to Request an Installation Review
Contact the licensed installer if a connection leaks or the service line does not operate normally after work. Contact WFI if full-cycle billing results do not match the savings analysis; results depend on the degree of over-registration present before installation.
Confirm the FCD is immediately after the utility meter and ahead of the PRV. A steady-flow utility meter test may still pass, because a bench test never recreates the demand surges that cause over-registration. Use bills and operating records rather than fixture symptoms to judge whether the meter is over-registering.

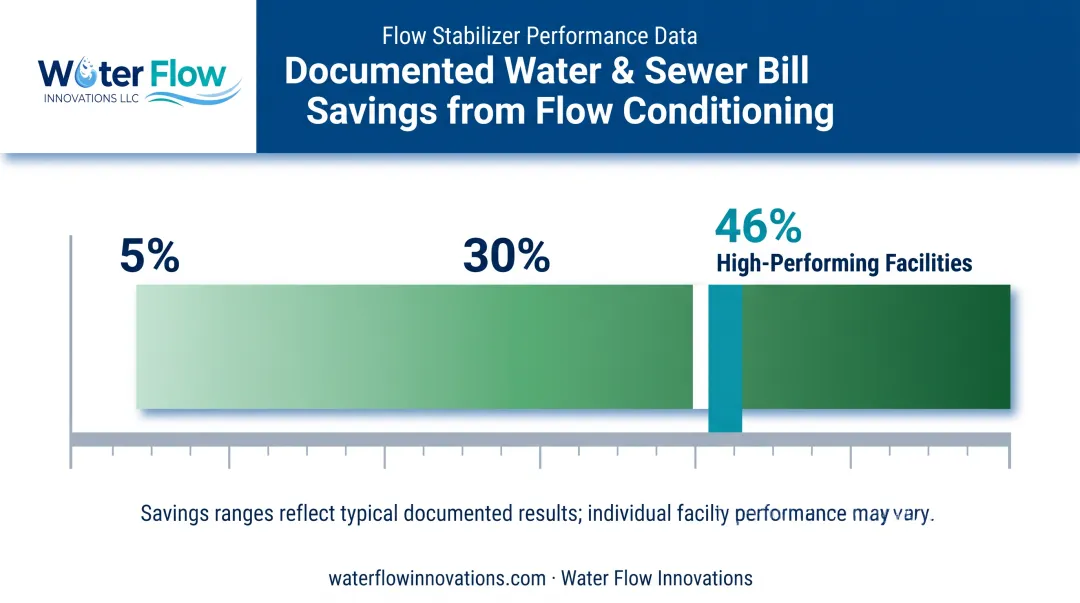

Documented installations typically show up to a 30% reduction in combined water and sewer costs (46% is the highest documented, a rare case). Facility results depend on the amount of over-registration present.
Pro Tips for Installing a Flow Conditioning Device Effectively
- Schedule around facility operations. Plan the approximately one-hour water shutoff with the people who manage production or building services.
- Document the billing baseline. Keep comparable full-cycle bills, occupancy or production records, and submeter readings for the savings review. Corrected meter data supports more accurate reported water intensity; the FCD does not conserve water.
- Confirm the configuration. Ask WFI and the licensed installer about meter location, PRV order, pipe compatibility, and sizing before work begins.
Conclusion
When facilities search for water flow stabilizer installation, what WFI actually installs is not a stabilizer: the FCD is fitted immediately after the utility meter so its controlled back-pressure reaches the meter during surges. It corrects the meter reading by reducing the gas and vapor counted as water; it does not stabilize water inside the building.
Use a licensed plumber or mechanical contractor, and evaluate billed results from the next full billing cycle against facility activity and submeter records.
Frequently Asked Questions
How long does it take to install a flow conditioning device?
A licensed plumber or mechanical contractor completes installation in about 1 hour, with the water off for about 1 hour. Confirm the schedule and site details before work begins.
Can I install a flow conditioning device myself?
Use a licensed plumber or mechanical contractor. WFI sizes the device to the facility's pipe and meter, and the installer follows the device instructions and local requirements.
Does a flow conditioning device reduce water pressure in the building?
Pressure loss across the FCD is under 0.8 psi across all flow conditions, so downstream operations see no practical change. It does not reduce water use or stabilize building pressure.
Where should a flow conditioning device be installed in a plumbing system?
Immediately after the water meter, ahead of the PRV and before the line splits into internal building distribution. The order is meter → FCD → PRV → backflow preventer → building distribution.
How do I know if the installation was successful?
The licensed installer checks for leaks and confirms normal service. Then compare full-cycle billed volume with occupancy, production, operating hours, or submeter records. Savings start on the next full billing cycle.
What happens if the FCD is installed incorrectly?
Ask the licensed installer to correct any leak or configuration issue. The FCD belongs immediately after the utility meter and ahead of the PRV, so confirm that location with the installer.
What reduction should show up on the bill?
Documented installations typically show up to a 30% reduction in combined water and sewer costs (46% is the highest documented, a rare case). Savings start on the next full billing cycle; individual results depend on the over-registration present.
