Bulk water flow measurement has become critical for industrial, municipal, and commercial operations managing tighter budgets and stricter sustainability targets. This guide covers what bulk flow measurement actually is, the major technologies available, and how to select and maintain the right approach for your application.
Key Takeaways
- Bulk flow measurement tracks water volume or velocity for billing, process control, and compliance
- Core technique groups: mechanical, differential pressure, magnetic, ultrasonic, and open-channel
- Choose by fluid cleanliness, pipe size, flow range, budget, and install constraints
- Turbulence and air entrainment can make even accurate meters over-register
- The right approach affects utility costs, ESG reporting, and operating reliability
What Is Bulk Water Flow Measurement and Why Does It Matter?
Bulk water flow measurement quantifies the total volume or rate of water moving through a pipe, channel, or system over a given period. Results are typically expressed in gallons per minute (gpm), cubic feet per second (cfs), or gallons per billing cycle. One cfs equals roughly 448.8 gpm, a conversion worth knowing when comparing meter specs across formats.
This measurement underpins several core business functions:
- Utility billing: the basis for what a facility pays each month
- Water rights compliance: required in regulated allocation systems
- Leak detection: flags abnormal consumption patterns early
- Process control: keeps manufacturing operations running within spec
- Sustainability/ESG reporting: supports LEED and environmental disclosures
Accuracy has real financial consequences. The EPA identifies customer-meter inaccuracies as a contributor to "apparent losses." Those losses make up part of an average system-wide water loss rate of 16%, and up to 75% of that may be recoverable through better measurement and audit practices.
A poorly matched meter can silently inflate bills for years before anyone notices. Knowing the main measurement techniques helps facilities choose equipment that fits their pipes, flow conditions, and compliance needs.
Types of Bulk Water Flow Measurement Techniques
No single technology fits every application. Pipe size, fluid cleanliness, flow rate range, and budget vary enormously between a food processing plant, an irrigation district, and a municipal treatment facility.

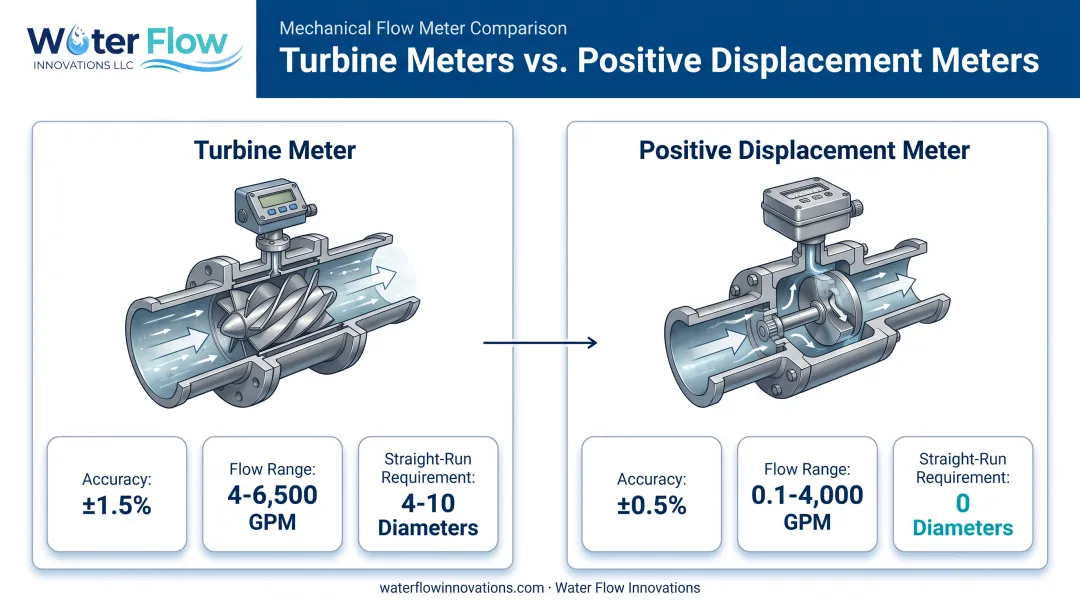

Mechanical (Turbine & Positive Displacement) Meters
These meters use a rotating turbine or a displacement chamber where rotation speed or fill cycles correlate directly to flow rate. Unlike non-invasive technologies, they rely on moving parts in direct contact with the fluid.
Best suited for: clean, low-viscosity water applications such as commercial and municipal billing.
Manufacturer data illustrates typical performance. Badger's Recordall Turbo Series lists registration accuracy around ±1.5% in normal operating range, with a minimum of 95% at low flow, across sizes from 1.5 to 12 inches.
Neptune's HP Turbine line shows similar ranges, with normal flow spanning 4-160 gpm up to 50-6,500 gpm depending on model size.
Key strengths:
- Cost-effective and well-understood
- Widely available across pipe sizes
- Simple to maintain with removable measuring elements
Limitations:
- Require straight pipe runs (Neptune specifies 4-10 diameters upstream depending on strainer use)
- Vulnerable to debris and wear
- Lose accuracy at flow extremes outside their rated range

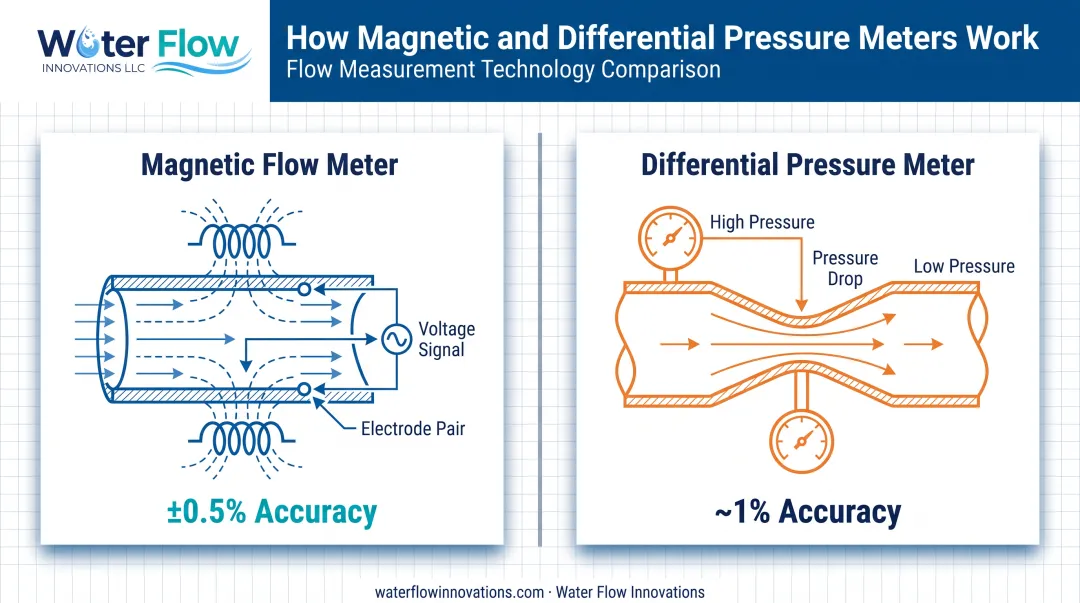

Differential Pressure & Magnetic Flow Meters
Differential pressure (DP) meters (venturi tubes, orifice plates) calculate flow from the pressure drop across a constriction. Magnetic meters use Faraday's law, detecting a voltage signal generated as conductive fluid moves through a magnetic field.
How they differ: Magnetic meters have no moving parts and cause negligible pressure loss. DP meters create intentional pressure loss to generate their measurable signal.
| Feature | Magnetic | Differential Pressure |
|---|---|---|
| Moving parts | None | None (but has flow restriction) |
| Pressure loss | Negligible | Built-in by design |
| Fluid requirement | Conductive (≥5 µS/cm) | Liquids and gases |
| Best fit | Wastewater, conductive fluids | High-pressure industrial systems |
Endress+Hauser's Promag P 300 magnetic meter reports accuracy of ±0.5% of reading, with straight-run requirements of just 5 diameters upstream and 2 downstream, modest compared to mechanical alternatives.
On the DP side, EPA guidance notes venturi tubes achieve roughly 1% discharge-coefficient uncertainty under optimum conditions, though upstream disturbances can push that error higher.
Limitations: DP meters need regular calibration and create permanent head loss. Magnetic meters require conductive fluid and non-conductive pipe liners, ruling them out for certain pipe materials.

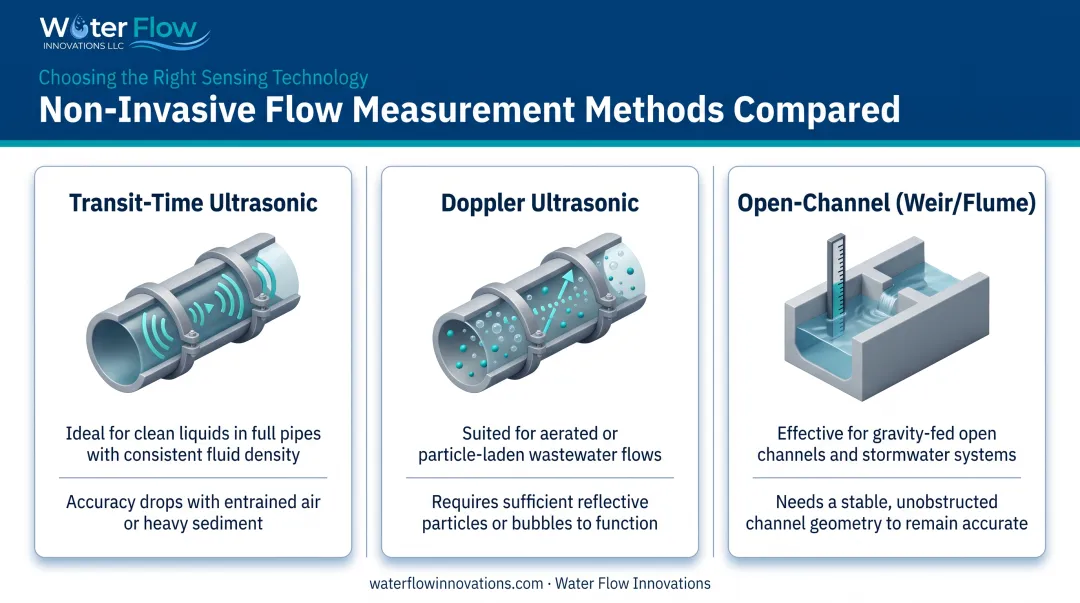

Ultrasonic & Open-Channel Meters
Ultrasonic meters use sound waves to measure velocity non-invasively. Two main types:
- Transit-time: measures the time difference of sound pulses traveling with and against flow; best for clean liquids
- Doppler: measures frequency shift off particles or bubbles; needs suspended solids to work
Open-channel meters (weirs, flumes) instead measure depth in non-pressurized channels and derive flow from that, following standardized geometries like those in ISO 1438 for thin-plate weirs.
Best suited for:
- Ultrasonic clamp-on units — potable water systems needing non-disruptive installation, no pipe cutting required
- Open-channel methods — stormwater, irrigation channels, partially full sewer lines
Key strengths:
- Ultrasonic meters work across pipe materials with minimal maintenance (nothing touches the fluid)
- Open-channel meters measure accurately without submerged sensors
Limitations:
- Doppler meters need particulates; clean water gives them nothing to reflect off
- Open-channel methods only work for non-pressurized, gravity-fed flow
- Neither approach fits full, pressurized pipe systems the way inline meters do
How to Choose the Right Bulk Water Flow Measurement Technique
Match technology capabilities to your specific operational needs. Don't default to whatever is most common or most advanced.
- Assess fluid characteristics. Clean water, particulate-laden water, and conductive water each favor different meter families. Conductive wastewater suits magnetic meters; clean potable water pairs well with ultrasonic meters.
- Map flow rate range against pipe size. Every meter has a minimum and maximum accurate range. A turbine sized for 200 gpm won't perform well at 10 gpm.
- Evaluate installation constraints. Does the project allow cutting into the pipe, or does it need a clamp-on, non-invasive solution? Installation limits alone can eliminate several options.
- Weigh budget against long-term maintenance. A cheaper mechanical meter with moving parts may cost more over time in calibration and wear-part replacement than a pricier magnetic or ultrasonic unit.
- Confirm regulatory and reporting requirements. Potable water billing applications often require certified meters meeting standards like ISO 4064 or AWWA C701.
Common Pitfalls to Avoid When Selecting a Flow Meter
Even experienced teams make avoidable mistakes here:
- Over-specifying expensive precision instruments. A Coriolis or advanced ultrasonic system might sound impressive, but a simpler mechanical or DP meter often meets the application's actual needs at a fraction of the cost.
- Ignoring straight-pipe run requirements. Installing a meter too close to an elbow or valve, without the manufacturer-specified upstream/downstream clearance, silently degrades accuracy from day one.
- Assuming meter accuracy guarantees billing accuracy. This is the pitfall most often missed: turbulence and air entrainment in the flow stream can make a perfectly calibrated meter over-read, independent of its precision rating.
Beyond Choosing a Meter: Why Accurate Measurement Isn't Always Enough
Here's the part most selection guides skip. Even a properly sized, well-calibrated meter can still register inflated flow due to real-world conditions in the piping system itself: turbulent flow, entrained air, and pressure fluctuations from on-off cycling or variable demand.
This is where flow conditioning comes in as a complementary fix, not a meter replacement.

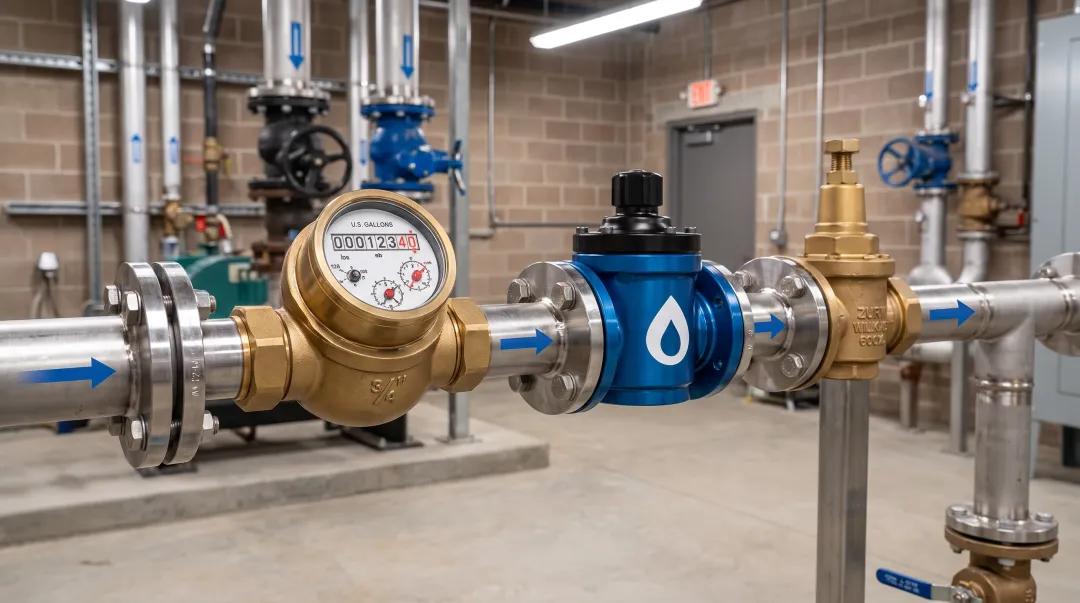

Water Flow Innovation's Flow Conditioning Device (FCD) installs immediately after the existing water meter and addresses over-registration through four components:
- Air/gas separation: Builds static back pressure that displaces entrained air so the meter does not bill air as water
- Pressure regulation: Stabilizes flow at the meter inlet and reduces water hammer from cycling equipment
- Check valve: Blocks reverse flow that can pull air back into the line
- Turbulence elimination: Cuts vortex flow during tank fills, CIP cycles, and irrigation surges so flow at the meter stays steadier
Each unit is custom-fabricated in 316L stainless steel for pipe sizes from NPS ½" through 12". It carries IAPMO, NSF, ANSI, CAN 61, KIWA, GMP, and SQF certifications, installs in about an hour, and adds negligible pressure loss.

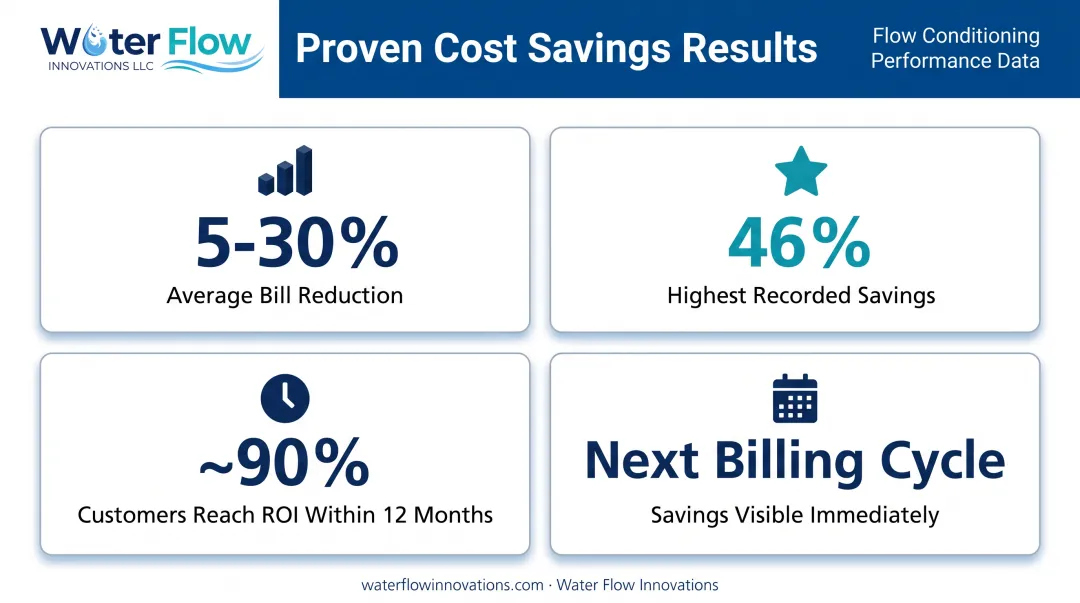

Facilities in manufacturing, hospitality, healthcare, and municipal operations have documented measurable bill impact:
- 5–30% average water and sewer bill reduction
- 46% highest recorded savings result
- ~90% of customers reach full ROI within 12 months
- Savings often appear on the next billing cycle, with data useful for ESG and sustainability reporting
Frequently Asked Questions
How do you measure water flow?
Meters detect either velocity (turbine, ultrasonic, magnetic) or volume displacement (positive displacement), then convert that data into flow rate using known pipe geometry. The specific method depends on the meter technology installed.
What is the typical flow rate of a 3/4 inch water meter?
Continuous and maximum flow rates vary by meter type and manufacturer. Check the product data sheet—displacement and turbine models differ significantly at this size.
What is the most accurate type of flow meter for water?
Ultrasonic (transit-time) and magnetic flow meters rank among the most accurate for clean or conductive water. Magnetic units often report around ±0.5% of reading, though real-world accuracy still depends on correct installation.
Can a water meter over-report actual usage?
Yes. Turbulence, air entrainment, and improper installation can make a technically accurate meter register more flow than is actually consumed. That drives inflated bills unrelated to the meter's rated precision.
How often should bulk water flow meters be calibrated?
It depends on meter type, application severity, and regulatory requirements. Mechanical meters with moving parts typically need more frequent checks than non-invasive ultrasonic or magnetic units.
Do all industries use the same flow measurement technique?
No. Selection depends on fluid cleanliness, flow volume, and regulatory needs. Food and beverage plants often favor sanitary sensors, while wastewater facilities commonly use magnetic meters.
Does an over-reported volume affect more than the water charge?
Yes. Sewer is normally billed as a share of metered intake rather than measured discharge, commonly 80–120% of the water charge, so volume recorded in error is charged on both lines every cycle.
What is reviewed to establish whether bulk readings are inflated?
A free assessment of your water and sewer bills alongside meter size, pipe size, line pressure, and PRV configuration. Those inputs confirm whether over-reading conditions exist and size the correction, with no commitment.
