Choosing the wrong type isn't a minor detail. It affects compliance, water quality, equipment lifespan, and your utility bills. This guide breaks down the main check valve types used in residential, commercial, and industrial water systems, and how to pick the right one for your application.
Key Takeaways
- Check valves are self-acting, one-way valves that stop backflow and protect pumps, meters, and water quality
- Main types: swing, ball, lift, silent, diaphragm, dual-plate, and tilting disc—each fits different flow, pressure, and space needs
- Match the valve to flow, pipe orientation, fluid cleanliness, pressure, and maintenance access
- Wrong valve choice or backward installation causes water hammer, backflow risk, or premature failure
What Is a Check Valve?
A check valve is a self-acting, one-way valve. It lets fluid flow in a single direction and closes automatically the moment flow tries to reverse.
It needs no electricity, actuator, or manual lever. The valve opens and closes purely based on pressure differential across it: forward pressure pushes it open; reverse pressure (or the absence of forward flow) lets it seat closed.
You'll find check valves protecting:
- Pump discharge lines
- Water meters
- Irrigation systems
- Municipal and commercial distribution networks
In water systems, that one-way function stops backflow that can damage pumps, contaminate supply lines, and throw off meter readings.
Why Are Check Valves Important in Water Systems?
Without a functioning check valve, reversed flow can slam back into a pump, contaminate a supply line, or skew meter readings. The consequences aren't hypothetical.
The EPA's historical review found 226 waterborne disease outbreaks, 59,698 illnesses, and 392 deaths attributed to cross-connections in the US between 1920 and 1979: clear evidence of how much damage backflow can cause when nothing stops it (EPA cross-connection report).
When a check valve fails or is missing, common outcomes include:
- Contaminated water supply from backsiphonage
- Pump burnout from reverse-spinning impellers
- Failed cross-connection control inspections
- Wasted water and inflated utility costs
Check valves also support accurate metering. Reverse flow and pressure surges can let air re-enter a line after it has been purged. Trapped air or turbulence at the meter can make it register more flow than actually passed through.

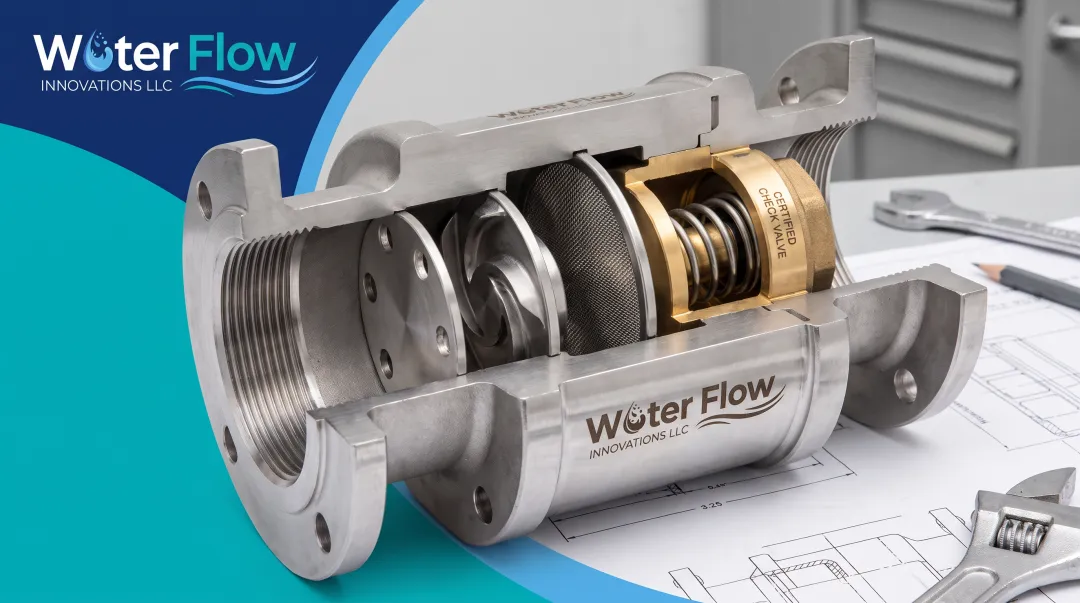

That is why Water Flow Innovation includes a certified check valve as one of four components in its Flow Conditioning Device (FCD). The check valve helps cut water-hammer and pressure surges, limiting the reverse-flow conditions that let air distort meter readings.
Paired with the FCD's air/gas separation, pressure regulation, and turbulence elimination, it supports steadier flow and documented utility bill savings. The check valve is not on every FCD; it is specified only when system conditions call for it.
Types of Check Valves for Water Systems
Check valves aren't one-size-fits-all. The right type depends on pipe orientation, flow velocity, fluid cleanliness, and pressure conditions in your specific system.

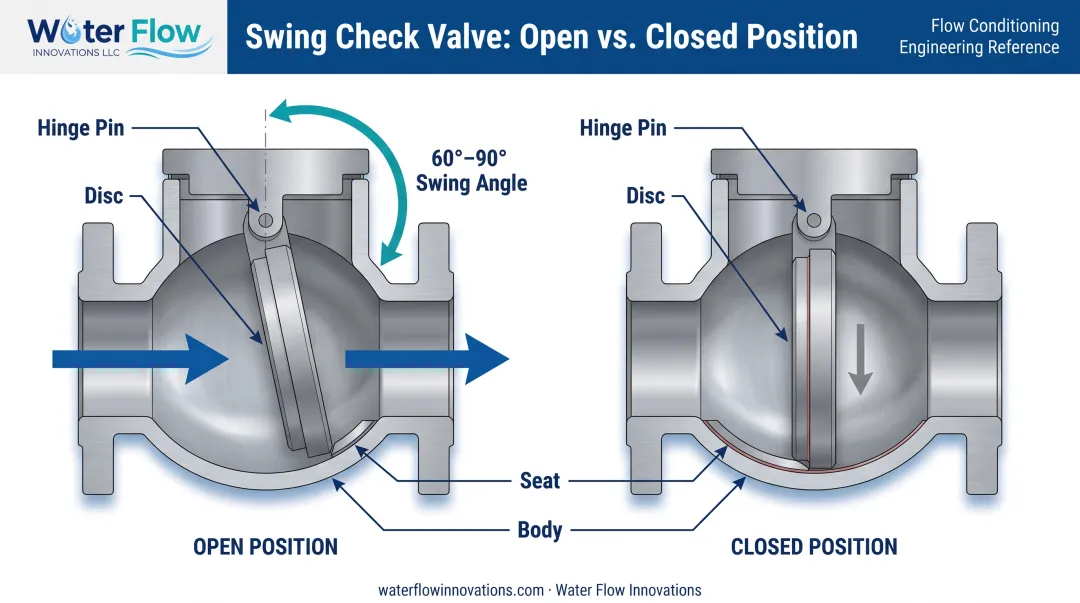

Swing Check Valves
A hinged disc swings open with forward flow and shuts by gravity when flow stops or reverses.
- Design: Gravity-operated full-port disc with low pressure drop; needs horizontal installation
- Best for: Large-diameter horizontal pipelines, municipal water mains, fire sprinkler systems, irrigation lines
- Strengths: Minimal flow resistance, simple construction, cost-effective on high-flow lines
- Limitations: Unsuitable for vertical lines. The disc’s longer swing stroke (traditionally 60–90 degrees) closes slowly and can contribute to water hammer in high-pressure systems (Val-Matic design guide)
Ball Check Valves
A free-floating ball lifts off its seat with forward flow and drops back to seal when flow reverses.
- Design: Unobstructed, self-cleaning bore that tolerates debris and sediment well
- Best for: Sump pumps, wastewater lines, vertical installations, systems with particulates
- Strengths: Low maintenance, reliable sealing, low jamming risk with solids
- Limitations: Poor fit for high-viscosity fluids in small pipes; no open/close indicator. Ball travel distance can raise slam risk in high-head applications
Lift and Silent Check Valves
Lift valves use a vertically guided disc or piston that rises with pressure. Silent (spring-assisted) versions close before reverse flow fully develops.
- Design: Spring-loaded closure in roughly 0.1 seconds, stopping reverse flow before it gains momentum
- Best for: Potable supply lines, hydronic heating, boiler feedwater, and pump discharge lines that need quiet, tight shutoff
- Strengths: Strong water-hammer control and dependable sealing under high pressure differentials
- Limitations: Higher cost than basic swing or ball designs; more moving parts to inspect

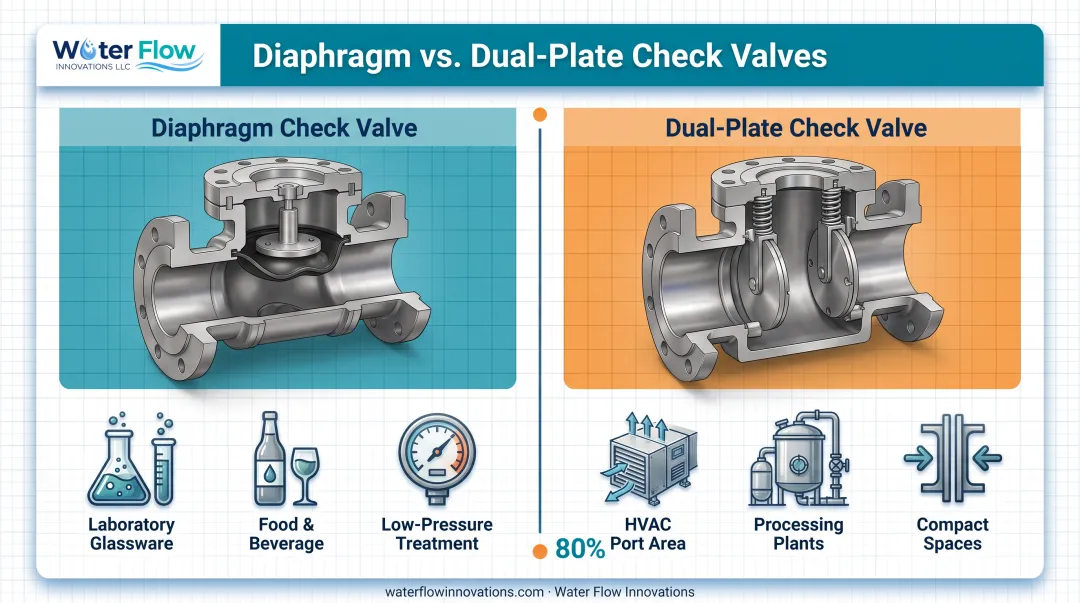

Diaphragm and Dual-Plate Check Valves
Diaphragm valves use a flexible membrane that flexes open with forward flow. Dual-plate valves use two spring-loaded half-discs that open like double doors.
- Design: Diaphragm suits clean, low-pressure service; dual-plate handles high-pressure, high-flow duty in tight spaces
- Best for: Diaphragm in labs, food and beverage, and low-pressure treatment. Dual-plate in HVAC, processing plants, and compact high-pressure lines
- Strengths: Diaphragm gives quiet, tight sealing on clean water. Dual-plate closes fast with a compact footprint (about 80% of pipe-size port area)
- Limitations: Diaphragm is weak under high pressure. Dual-plate costs more, and its center spoke can collect debris in dirty water (Val-Matic design guide)
How to Choose the Right Check Valve for Your Water System
The right valve is the one that matches your system's actual operating conditions—not the most popular model or the lowest sticker price.
Run through these factors before you buy:
- Flow characteristics: Is flow constant or pulsating? Pulsating flow raises water hammer risk and often calls for a spring-assisted design.
- Pipe orientation: Vertical runs need spring-loaded or ball valves; swing valves require horizontal installation.
- Fluid type and cleanliness: Clean potable water tolerates diaphragm or lift designs; wastewater or debris-heavy fluids need ball or swing valves.
- Pressure range and cracking pressure: Match the valve's opening requirements to your system's actual pressure profile.
- Space constraints: Dual-plate wafer designs fit tight mechanical rooms; swing valves need more laying length.
- Total cost of ownership: Factor in installation, maintenance, and ongoing head loss, not just the sticker price. Val-Matic's own example estimated $2,230 in annual energy savings for a tilted-disc valve over a silent check valve under specific flow conditions (Val-Matic design guide).
Caution: Installing a check valve backwards or in the wrong orientation is one of the most common and costly mistakes. Always verify the flow direction arrow stamped on the valve body before installation.
Conclusion
Check valves protect water systems from backflow, contamination, and equipment damage, but only if you pick the right type. Swing, ball, lift/silent, diaphragm, and dual-plate valves handle different flow rates, pressures, and space constraints.
Match the valve type and orientation to your system, and you gain steadier reliability, simpler compliance, and lower lifetime cost. Use the flow, pressure, and layout requirements in this guide to narrow the choice before you buy.
