This is more common than most facility managers assume. Turbulent flow, air entrainment, high pressure, and aging mechanical components all cause meters to misread, often by significant margins. A 2016 industrial-water study found ultrasonic meter deviations ranging from -6% to +3% simply from flow disturbance after a double elbow fitting, depending on distance and orientation from the disruption (ScienceDirect, 2016).
This article covers how to identify over-reading, the root causes behind it, a step-by-step correction process, and when you need a professional flow conditioning solution versus a meter swap.
Key Takeaways
- Over-reading usually comes from turbulence, air, pressure swings, or aging meters—not higher usage
- Replacing the meter won't fix a flow-related root cause
- Compare metered volume to a calibrated reference before any fix
- Flow conditioning devices often fix turbulence and air issues without meter work
- Corrections can show results on the very next billing cycle
What Is Water Meter Over-Reading?
Over-reading is a mismatch: the volume your meter records versus the volume that actually passed through your pipe. When the meter says more, you pay more, even though you didn't use more water.

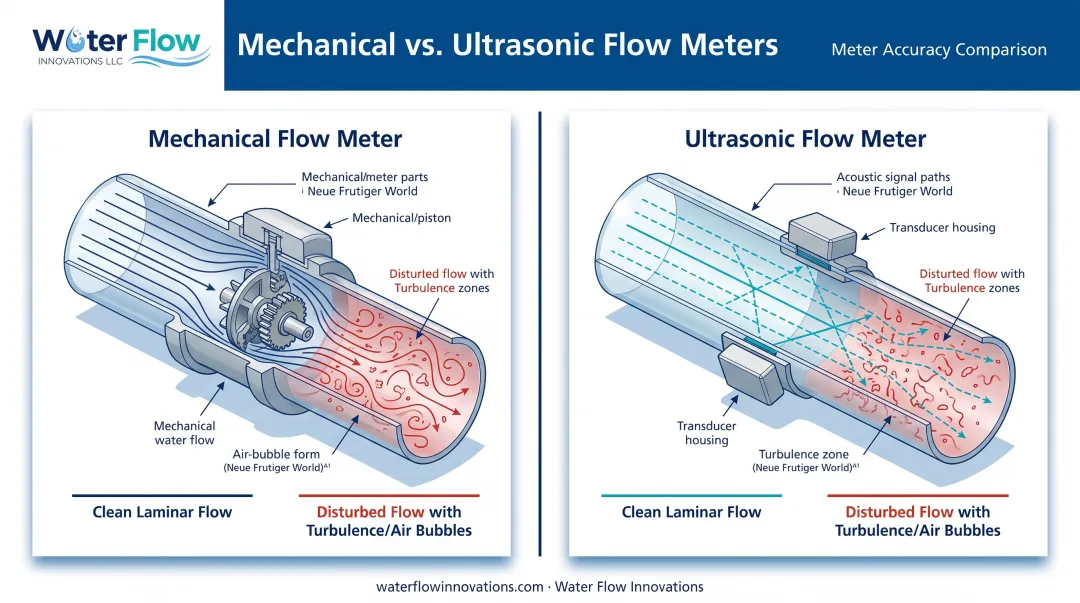

How meters actually work:
- Mechanical meters (positive displacement, turbine, compound) use physical rotation: an impeller or piston moves with water flow and converts that movement into a volume reading
- Ultrasonic meters measure the time difference between upstream and downstream acoustic signals to calculate velocity
Both designs assume a clean, stable, fully-liquid flow profile. Disturb that profile with turbulence, trapped air, or pressure surges, and the meter's internal logic starts miscounting.
Your facility may not be using excess water at all. Over-reading is a measurement problem, and you can usually fix it without buying a new meter.

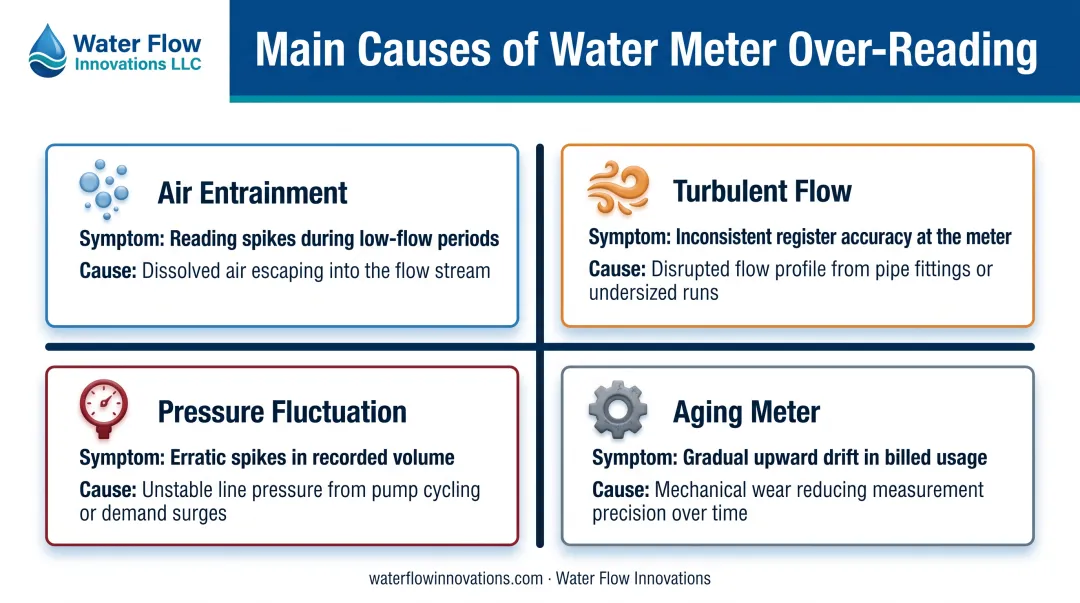

Common Problems & Root Causes of Over-Reading
Over-reading follows predictable patterns tied to flow conditions, not random equipment failure. Here's what typically causes it.
Problem 1: Air Entrainment in the Line
Symptoms: Sudden bill spikes with no corresponding change in actual usage.
Likely cause: Air pockets from pumps, elevation changes, or intermittent supply. Many mechanical meters can't distinguish between a water column and a mix of water and air, so the air gets counted as billed volume.
Problem 2: Turbulent or Irregular Flow
Symptoms: Inconsistent readings, especially in facilities with bends, valves, or undersized piping near the meter.
Likely cause: Insufficient straight-run distance before the meter. Industry guidance varies. Georgia's EPD recommends roughly 10 pipe diameters upstream for ultrasonic meters, while EPA guidance for submetering suggests 5 diameters upstream (EPA WaterSense, 2023). Either way, tight piping layouts create erratic spinning or acoustic misreads.
Problem 3: High or Fluctuating Water Pressure
Symptoms: Readings that shift with time of day or with usage patterns elsewhere in the building.
Likely cause: Pressure surges from pump cycling or demand spikes can push extra volume past the meter mechanism without that volume reflecting real consumption downstream.
Problem 4: Aging or Improperly Sized Meter
Symptoms: A gradual, sustained increase in billed usage over months or years, with no operational changes to explain it.
Likely cause: Worn internal components, or a meter that was never sized correctly for the facility's actual flow range. Testing intervals matter more than a fixed age. Most guidance calls for testing 1-4 inch meters every 5 years, and meters larger than 4 inches annually.
Ignoring any of these causes has real financial consequences:
- Unnecessary consumption charges
- Inflated sewer discharge fees based on inflated water volume
- Skewed sustainability or ESG data that misrepresents your facility's actual footprint

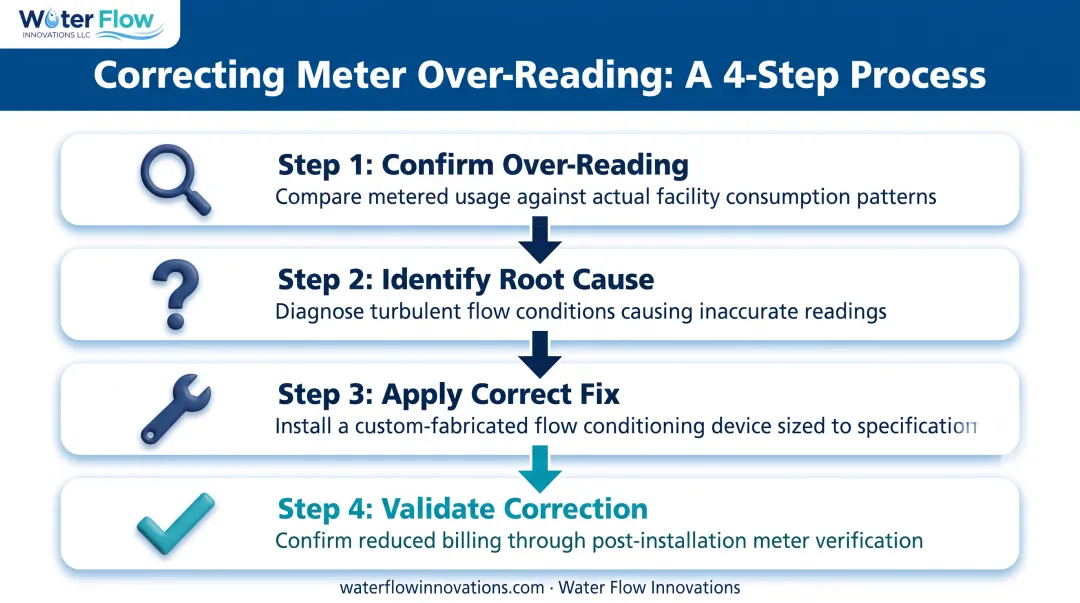

How to Correct Water Meter Over-Reading (Step-by-Step)
Correcting over-reading without confirming the cause first often means paying for a meter replacement when the real problem is flow turbulence. This process isolates whether your issue is mechanical, flow-related, or pressure-related before you spend a dollar on a fix.
Step 1: Confirm the Over-Reading Exists
Before assuming anything is wrong, verify it:
- Run a comparison test (bucket test or sub-meter reading over a defined period) against your billed volume
- Match your test to AWWA accuracy standards for your meter class (C700 displacement, C701 turbine, C702 compound, C704 propeller)
- Pull your billing history and flag unexplained spikes with no operational change behind them
Step 2: Identify the Root Cause Category
Once you've confirmed a deviation, narrow down the "why":
- Check upstream piping for elbows, valves, or pump proximity that could disturb flow before it reaches the meter
- Rule out actual leaks: a real leak downstream is a plumbing problem, not meter over-reading
- Determine the pattern: does the error track pump cycling and startup (air/pressure), or stay constant regardless of operating conditions (mechanical wear)?
Step 3: Apply the Correct Fix
The fix depends entirely on what Step 2 revealed.
If the issue is air entrainment or turbulent flow:

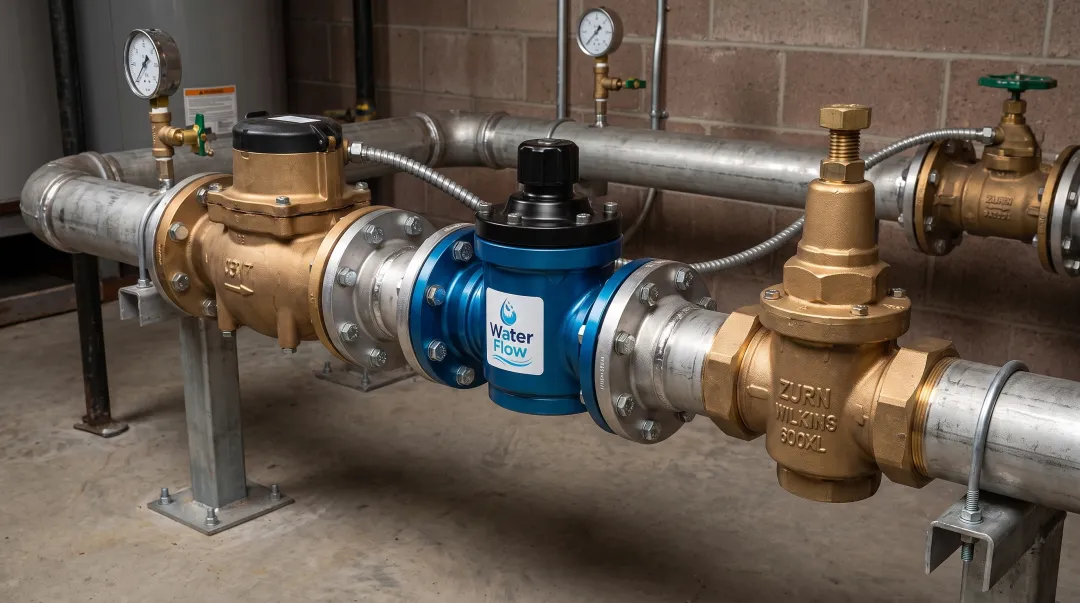

This is the most common and most overlooked cause of over-reading in commercial and industrial facilities. A Flow Conditioning Device (FCD) from Water Flow Innovation addresses it through four integrated components:
- Separates air and gas to create back-pressure and laminar flow so the meter reads a homogeneous water column
- Regulates pressure to smooth surges from pump cycling and variable demand
- Prevents reverse flow and limits water hammer with an integrated check valve (not needed on every installation)
- Eliminates turbulence by slowing velocity at the meter during high-volume events like CIP cycles or tank filling
Installation typically takes about one hour for straightforward configurations, up to a couple hours for complex industrial layouts, with no disruption to ongoing operations.
If the issue is mechanical meter wear:
- Recalibration or component replacement may suffice if the meter is within a repairable range
- Municipal utilities are typically responsible for replacing a faulty meter at no cost to the property owner — check your local utility's tariff, since policies vary
Step 4: Validate the Correction
Don't assume the fix worked. Confirm it:
- Monitor the next 1-2 billing cycles for stabilized, reduced usage figures
- Compare the new readings against your original sub-meter or bucket-test baseline
- Document the savings for internal tracking, finance reporting, or sustainability disclosures
Fix, Replace, or Correct the Flow? Choosing the Right Approach
Meter replacement doesn't automatically solve over-reading. If the root cause is flow-related rather than mechanical, a brand-new meter will over-read too.
| Scenario | Recommended Fix | Why Replacement Alone Fails |
|---|---|---|
| Old meter, erratic readings, no flow disturbance | Recalibrate if within utility standards; request replacement if beyond tolerance | N/A; replacement is appropriate here |
| Newer meter, spikes from turbulence/air/pressure | Install a certified flow conditioning device (FCD) upstream | A new meter in the same turbulent conditions over-reads again |
| High-volume facility, recurring bill spikes | Correct upstream flow (turbulence/air) with an FCD; savings often show on the next bill | Meter swaps don't touch underlying turbulence |
| Confirmed physical leak beyond the meter | Repair the plumbing directly | This isn't a meter over-reading issue at all |
The distinction matters financially. A meter swap costs time and money. If the real cause is upstream turbulence or air, inflated bills usually return within a cycle or two.
Preventive Measures and Mistakes to Avoid
Avoid these common missteps:
- Assuming a meter swap alone will fix over-reading without first confirming flow conditions are the real cause
- Skipping post-fix validation, which lets a recurring issue resurface months later
- Waiting until a utility dispute to start gathering test results and billing history
Build these preventive actions into your maintenance routine:
- Schedule periodic meter accuracy checks, especially for meters at or past standard testing intervals
- Install flow conditioning immediately after the meter where pumps, pump cycling, or tight piping create turbulence
- Keep dispute-ready documentation on hand: billing history, test results, and corrective actions taken
Facilities that install certified flow conditioning solutions often see savings on the very next billing cycle. That before-and-after data also supports ESG water-intensity reporting, LEED water-efficiency credits, and other sustainability disclosures without separate measurement infrastructure.
Frequently Asked Questions
What can cause a water meter to read high?
The main culprits are air entrainment, turbulent flow near bends or valves, high or fluctuating pressure, and mechanical wear in aging meters. Each disrupts the flow profile the meter relies on to measure accurately.
Are water meters supposed to be full of water?
Yes. Meters need to stay fully saturated with water to read accurately. Trapped air or gas pockets are one of the leading causes of over-reading because many meters count air volume as billed water.
How do I know if my water meter is over-reading rather than reflecting real usage?
Compare billed volume against a calibrated sub-meter or temporary ultrasonic meter over a set period. Also review billing history for spikes that don’t match any change in facility operations.
Can a water meter be fixed without replacing it?
Often, yes. If the over-reading stems from turbulence, air, or pressure issues rather than mechanical failure, a flow conditioning device installed immediately after the meter can correct it without any meter replacement.
Who pays for a water meter replacement if it's found to be faulty?
Municipal utilities generally replace faulty meters at no charge to the property owner, though policies vary by jurisdiction. Flow conditioning devices, by contrast, are typically installed at the property owner’s initiative.
How quickly will correcting over-reading show up on my bill?
A flow conditioning device often shows results on the very next billing cycle, as soon as the meter begins reading accurately. Meter replacement processed through a utility may take longer to schedule and reflect in billing.
How much does correcting over-reading typically save?
Documented installations average a 5–30% reduction in combined water and sewer bills, with a highest documented single result of 46%, and the change appears on the very next billing cycle with no ramp-up period.
Which facility types are most affected by meter over-reading?
Sites with frequent on-off demand cycling: hotels and hospitality, healthcare facilities, multifamily and apartment properties, car and truck washes, laundromats, food and beverage and dairy plants, data centers, golf courses, and schools and universities.
