This guide explains the pressure-control equipment a building engineer may specify and distinguishes it from Water Flow Innovation LLC's Flow Conditioning Device (FCD), which addresses water meter over-registration.
Key Takeaways
- A PRV limits excessive pressure delivered to the building; a booster system raises pressure where supply is insufficient.
- Pressure measurements during normal and peak demand guide equipment selection.
- Equipment size, placement, commissioning, and maintenance depend on the facility's design and locally adopted code.
- The FCD corrects meter over-registration during surges; it does not stabilize building pressure.
What Is a Water Pressure Stabilizer?

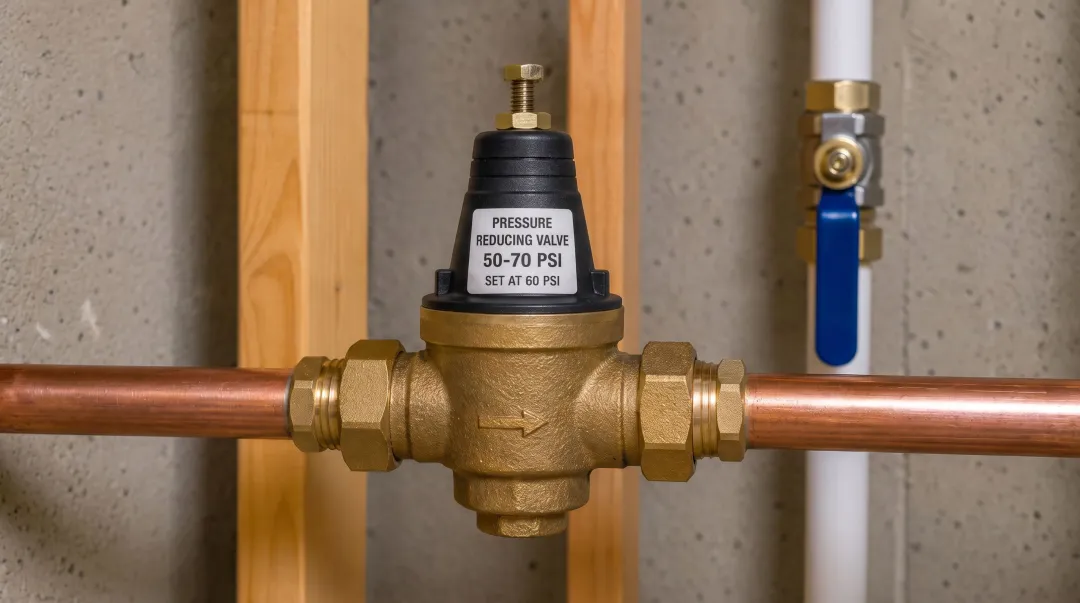

In a commercial building, the term may refer to a PRV or to a pump and control arrangement that holds pressure within the range specified by the building engineer. A PRV uses a valve mechanism to reduce higher inlet pressure to a controlled downstream setting. A booster system adds pressure and may use variable-speed controls to respond to changing demand. These devices act on pressure delivered to the distribution system.
PRV or booster system?
A PRV is appropriate when incoming pressure is too high for the downstream design. A booster system addresses inadequate pressure at critical demand points. A facility with both high incoming pressure and distant upper-floor demand may have more than one control stage. The engineer should verify the complete operating range before choosing equipment.
The 2021 International Plumbing Code addresses pressure regulation where static pressure exceeds 80 psi. Confirm the locally adopted requirements and the facility's design limits before changing settings.
How to Assess the Need for Pressure Control

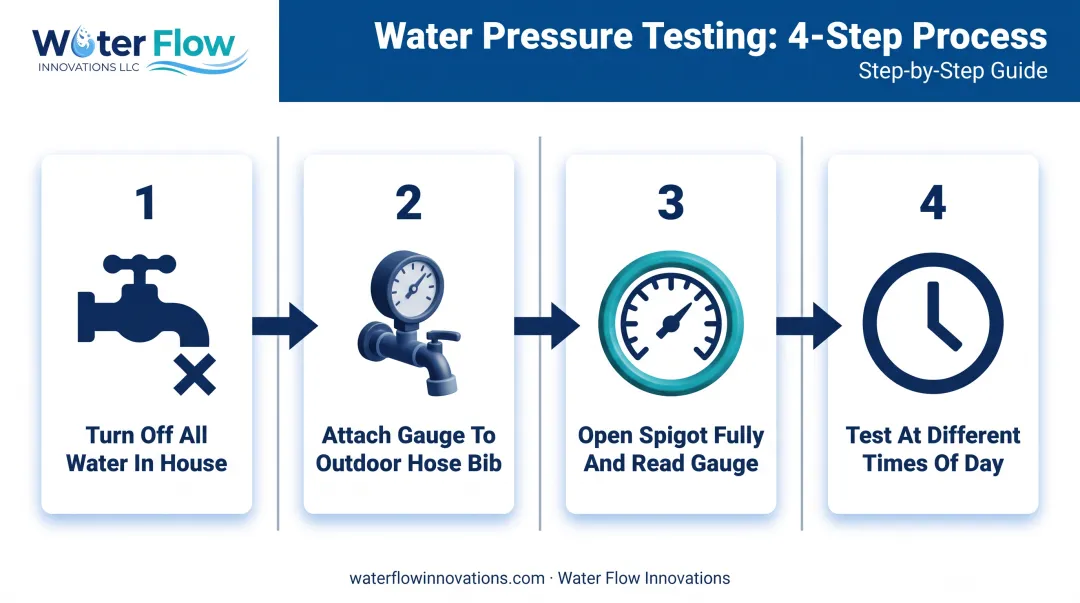

Facility staff can record pressure upstream and downstream of an existing PRV and at remote or elevated branches during both low and peak demand. Include pump status, operating hours, and valve positions in the log. An engineer can then determine whether the issue is supply variation, a restriction, insufficient pump capacity, a faulty PRV, or a control setting.
Noisy pipes or low pressure at a fixture can indicate a building-system issue. Those symptoms alone do not show that the utility meter is over-registering.
Selection and Placement
PRV and booster selection belongs to the facility engineer, who sizes and commissions the equipment for the building's operating range and locally adopted code.
For an installation that also uses WFI's FCD, the order is utility meter → FCD → PRV → backflow preventer → building distribution. The PRV controls downstream pressure. The FCD's role is limited to the meter conditions discussed below.
Maintenance and Verification
Trend upstream and downstream pressure and review readings when equipment cycles or demand changes. Inspect valve condition, strainers where specified, pump controls, and service records. A control that no longer holds its setpoint should be diagnosed and repaired or replaced according to the manufacturer's guidance.

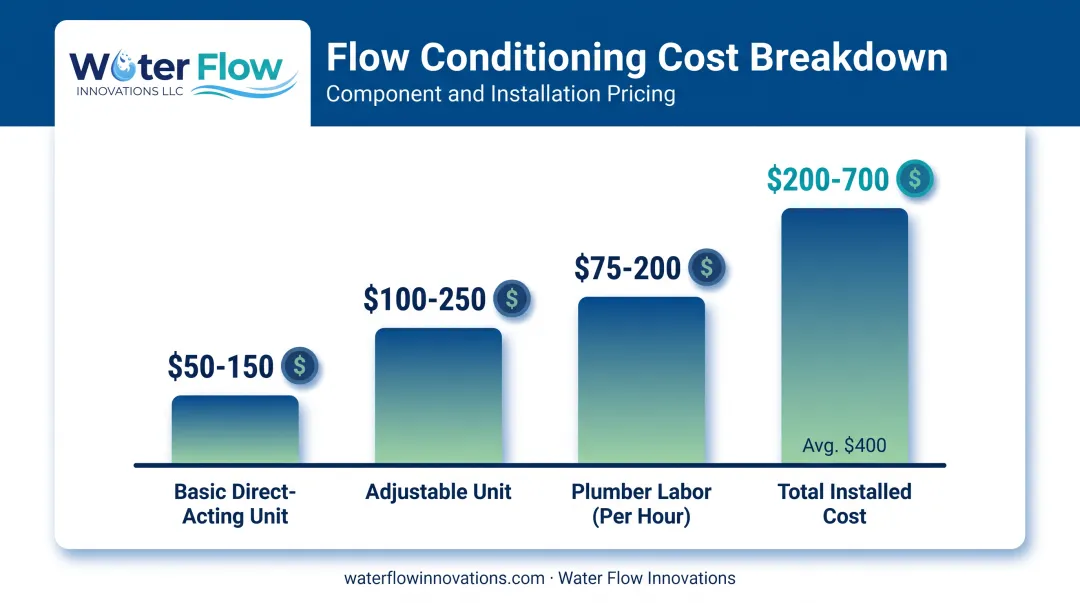

Use commercial equipment specifications and service intervals when budgeting for a facility system. Valve size, redundancy, access, shutdown planning, and commissioning can change the scope substantially.
How the FCD Differs
The FCD is a meter-focused device, not a water pressure stabilizer. During demand surges, water accelerates through the meter, pressure inside it drops, and gas and vapor can form and be counted as water. The FCD installs immediately after the meter, ahead of the PRV, and creates a small, controlled back-pressure that extends back through the meter. This holds pressure up during surges so far less gas and vapor form and are counted. The meter is usually accurate; demand surges in the service line cause it to over-register.
Pressure equipment can add to those surges. A booster pump start pulls a sudden rush of water through the meter, and a PRV that hunts, opening and closing repeatedly, sends pressure swings back through it. Variable-speed drives and soft starts on boosters, and servicing a PRV that hunts, reduce those effects; the FCD holds pressure up through the meter during the surges that remain.
Pressure loss across the FCD is under 0.8 psi across all flow conditions, with no practical change to downstream operations or actual water use. WFI assesses possible over-registration from water and sewer bills, meter and pipe sizes, line pressure, PRV configuration, and operating records. A pressure-control project and a billing assessment should each be based on their own evidence.
Frequently Asked Questions
What is a water pressure stabilizer in a commercial building?
It is a general term for equipment used to control pressure delivered to the building. A PRV limits excessive downstream pressure; a booster system raises insufficient pressure.
Where should a PRV be installed?
Placement depends on the engineered service arrangement and locally adopted code. Where WFI's FCD is also installed, the FCD goes immediately after the utility meter, ahead of the PRV.
How does a facility know whether a PRV or booster system is needed?
Measure pressure at the service entrance and critical branches during low and peak demand. A facility engineer can use those readings to identify excess supply pressure, insufficient pressure, restrictions, or control faults.
Can a faulty PRV cause low pressure?
Yes. A PRV that is misadjusted, obstructed, or failing can restrict downstream pressure. Measurements on both sides of the valve help identify the cause. A PRV that hunts can also add to meter over-registration by sending pressure swings back through the meter.
Is the FCD a water pressure stabilizer?
No. The FCD corrects meter over-registration during demand surges. It does not stabilize building pressure, fix fixture symptoms, or reduce actual water use.
What evidence supports a meter over-registration review?
Compare billed use with occupancy, production, operating hours, and submeters. A clean leak check alongside persistently high bills or water and sewer charges rising together can support a closer review.
