Conditioned laminar flow, meaning smooth, low-turbulence movement through a pipe, directly affects how accurately a water meter reads. Many facility managers struggle to understand why identical usage patterns produce inconsistent bills month to month.
Correct meter sizing and flow conditioner specification depend on how this regime behaves under real demand, including its operating range and boundary conditions.
This article breaks down what conditioned laminar flow actually is, where it fits within Reynolds number ranges, its key technical properties, how it is measured and validated, and what happens when systems run outside the recommended range.
Key Takeaways
- Conditioned laminar flow is smooth, uniform, low-turbulence movement created by removing entrained air and straightening velocity profiles
- Reynolds number, pipe geometry, and upstream valves or elbows determine whether flow stays stable
- Poor conditioning drives meter over-reading, higher water and sewer bills, and unreliable process data
- Flow conditioning devices restore stable flow with negligible impact on pressure or rate
What Conditioned Laminar Flow Represents in Water Systems

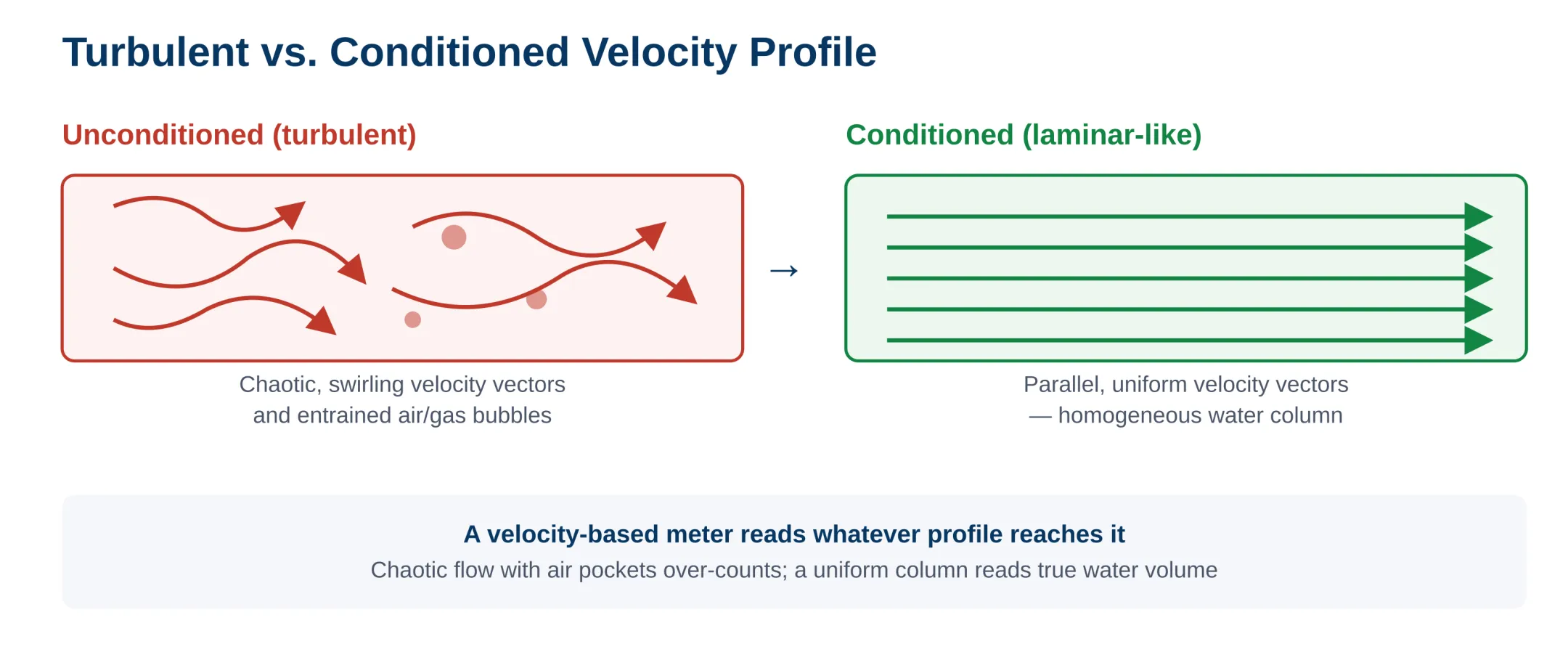

Conditioned laminar flow describes fluid moving in parallel layers with minimal mixing, achieved after the flow passes through a conditioning element that removes turbulence and entrained air. It is the technical opposite of the chaotic, irregular movement you get from an unconditioned pipe run full of elbows and valves.
True laminar flow, at a Reynolds number below roughly 2,000, is rare in commercial and industrial water systems, which normally run turbulent by design. What conditioning devices actually restore is a uniform, swirl-free velocity profile: laminar profiles near the measurement point, not necessarily a textbook laminar regime throughout the pipe.
This distinction matters for two reasons:
- It functions as an input condition that determines measurement accuracy at meters, sensors, or process equipment downstream
- It acts as both a derived characteristic, the result of upstream piping and conditioning choices, and a design parameter engineers must plan around during installation
Factors That Influence Laminar Conditioning in Real-World Operation
Lab-ideal laminar flow rarely survives untouched in real plumbing. Elbows, valves, and pumps all disrupt it before it ever reaches a meter.
Key disturbance sources include:
- Pipe fittings, bends, and valves upstream that introduce swirl and asymmetric velocity profiles
- Air entrainment from pumps, cavitation, or intermittent flow that distorts the profile and inflates apparent volume
- Pipe diameter changes, wear, and scale buildup that alter hydraulic diameter and surface roughness
- Variable demand and duty cycles that push flow rate and Reynolds number up and down throughout the day
A 2020 MDPI study of large water meters found that partially closed upstream valves could push measurement error above +30% in some gate-valve configurations, and the error direction was not always predictable. That single finding underscores why upstream conditions cannot be treated as a formality.
Range of Conditioned Laminar Flow
Laminar behaviour is bounded by Reynolds number, but the boundary is not a single hard line. It depends on conditioner design and available straight pipe run.
Nominal Operating Range

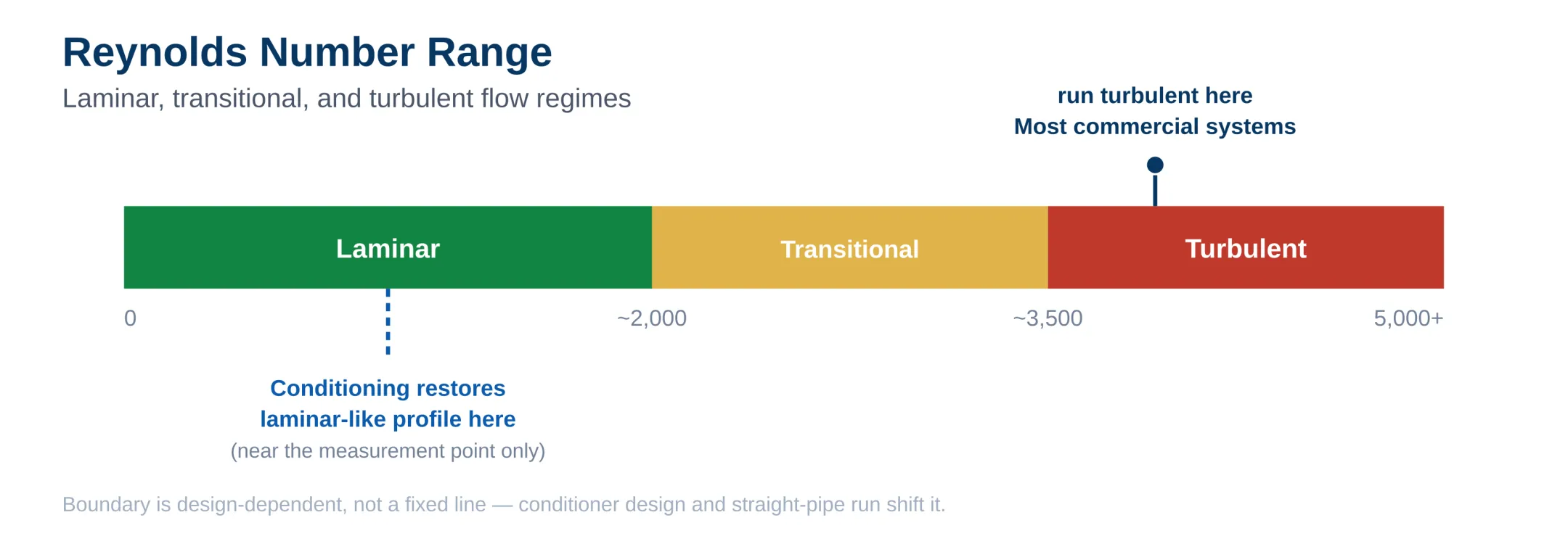

The DOE engineering handbook places laminar flow below a Reynolds number of roughly 2,000, turbulent flow above 3,500, with transitional behaviour in between. The often-cited "2,300" figure is an approximate textbook marker, not a guaranteed threshold.
In practice:
- Most commercial and industrial water systems run turbulent under normal operating flow rates
- Conditioning devices restore laminar-like characteristics near the measurement point, not laminar flow across the entire system
- Required straight-pipe distances vary by meter type. Some ultrasonic meter guidance calls for roughly 10 diameters upstream and 5 downstream
Boundary Limits and Safe Operating Margin
Transition back to turbulent flow and profile distortion can recur if:
- Flow rate spikes push Reynolds number past the conditioner's design margin
- Short-term surges from valve operation or pump cycling briefly disrupt an otherwise steady-state condition
- Continuous, sustained flow rates sit close to the transition zone rather than comfortably below it
Conditioners are designed with margin below the critical Reynolds number because real systems fluctuate. A conditioner tuned exactly to the transition point will drift into turbulence the moment demand ticks up.
Operating near that transition produces:
- Intermittent turbulence during peak-demand hours
- Fluctuating meter readings that do not match actual consumption
- Inconsistent billing data that is hard to reconcile month over month
Key Technical Properties of Conditioned Laminar Flow
Conditioned laminar flow comes down to three technical properties: how stable the velocity profile stays under changing demand, how well air and gas are kept out of the measurement zone, and how the conditioner behaves on system pressure.
Property 1: Stability and Variability
Velocity profile symmetry does not hold steady on its own. It shifts under fluctuating demand, intermittent flow, and duty-cycle changes throughout the day. A profile that is symmetric at 2 a.m. low demand can look completely different during a morning peak.
Repeatability matters just as much as the profile itself. As conditioners age or scale accumulates on internal surfaces, readings can drift. Periodic verification, rather than a one-time install-and-forget approach, is what protects long-term accuracy.
Property 2: Air and Gas Entrainment Removal
Dissolved and entrained air disrupts laminar profiles and inflates the apparent flow volume a meter registers. Air bubbles take up space in the pipe that a velocity-based meter interprets as water, and that gap between measured and actual is where bill inflation starts.

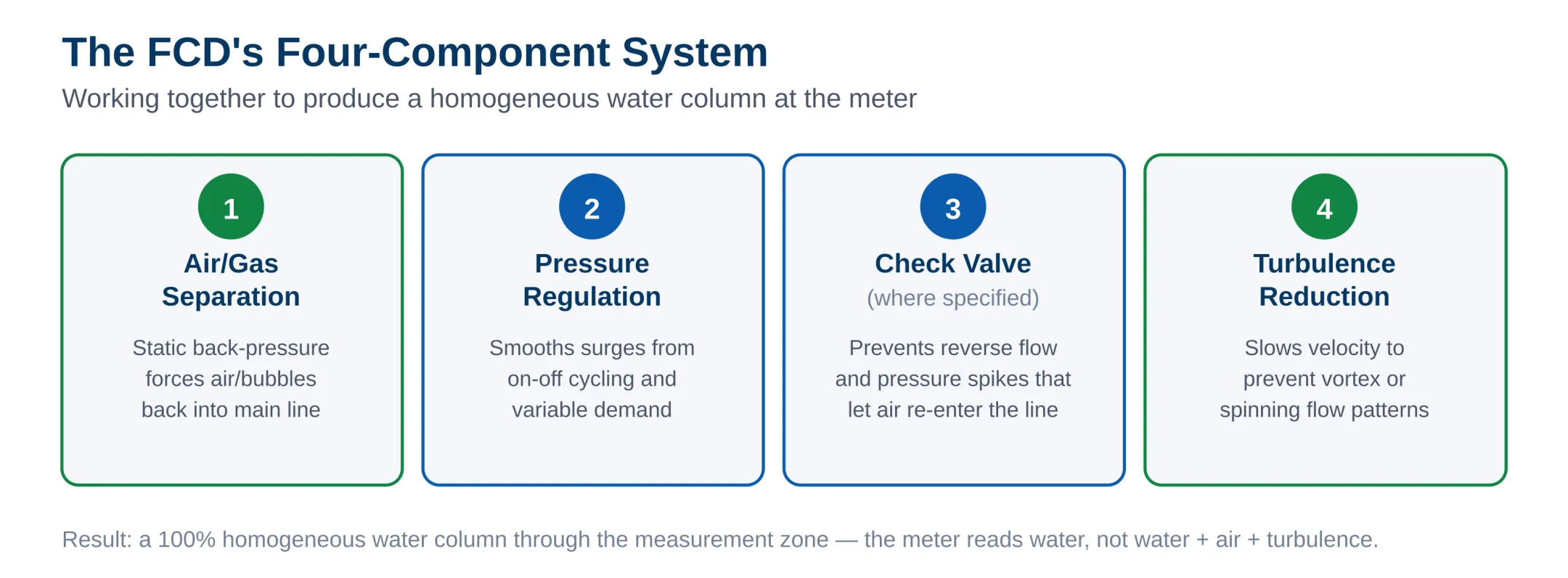

Water Flow Innovation's Flow Conditioning Device (FCD) addresses this with a four-component system. The FCD installs immediately after the water meter, on the consumer side of the connection.
- Air and gas separation — creates static back pressure that forces entrained air and micro-bubbles back into the main line rather than letting them pass the measurement zone
- Pressure regulation — smooths out surges from on-off cycling and variable demand, stabilising the pressure condition that makes air separation possible
- Check valve, where specified — prevents reverse flow and the pressure spikes that can let purged air re-enter the line
- Turbulence elimination — slows velocity just enough to prevent vortex or spinning flow patterns
The result is a homogeneous water column through the measurement zone, so the meter registers water rather than a mix of water, bubbles, and turbulence.
It is worth being precise about scope. The FCD corrects the meter reading. It is not a general cure for turbulence elsewhere in the piping system: pump wear, drainage buildup, and general pressure loss need their own fixes, such as long-radius elbows, more straight pipe, or a better layout. It also applies to the metered municipal supply connection only, so it has no effect on NPDES-regulated discharge or blowdown lines.
Property 3: Pressure and Coupling Effects
Any device that conditions flow interacts with pressure across it. Aggressive conditioning can add pressure drop, so design has to balance flow correction against negligible performance impact.
For the FCD specifically:
- Pressure loss is negligible by design, a fundamental design characteristic rather than a performance target
- A 3–5 psi reduction may occur during high-volume, open-discharge conditions, which can help when incoming municipal pressure runs high
- Rare cases show a few psi drop at the meter, still negligible overall
That stands apart from aggressive straightening vanes or undersized conditioners, which can add enough pressure loss to force pump adjustments elsewhere in the system.
How Conditioned Laminar Flow Is Specified, Measured, and Validated
Conditioned laminar flow is both a design specification and an operational condition you verify in the field, not something you assume from the datasheet alone.
Specification and Documentation
Meter and conditioner performance should reference:
- Manufacturer datasheets and straight-pipe run requirements specific to the meter model
- Recognised standards and certifications — IAPMO, NSF, ANSI, CAN 61, KIWA, GMP, and SQF each validate different things, from potable-water safety to production consistency
- The gap between rated conditioning performance under lab conditions and field-tested performance in your actual pipe run, under your actual demand pattern
NSF, ANSI and CAN 61 certifications validate drinking-water contact safety. They do not certify velocity-profile conditioning or meter accuracy on their own. Facilities should document hydraulic performance separately from health-effects certification.
Measurement and Verification Methods
The most reliable verification for commercial and industrial facilities is straightforward: compare utility bills before and after conditioning is installed.
A sound verification process includes:
- Reviewing 3–6 months of pre-installation bills to establish a baseline
- Tracking 2–3 full billing periods after installation for a proper savings comparison
- Cross-referencing smart water sensors or monitoring tools where already in place
- Measuring incoming pressure near the meter as part of the site survey
Lab Reynolds number thresholds rarely map cleanly onto variable real-world demand. Field verification through billing data is the practical standard.
That same before-and-after record serves more than accounting. It supports ESG water-intensity reporting, LEED water-reduction credits, and other sustainability programmes with an auditable trail and no extra measurement infrastructure.
Implications of Operating Outside the Recommended Range
Uncorrected turbulent or air-entrained flow shows up on your bill and shortens equipment life.
Performance loss mechanisms:
- Turbulence and air pockets cause meters to register more volume than what is actually delivered
- Vibration and pressure fluctuations from turbulent flow accelerate wear on valves, pumps, and meters
- Under severe test conditions, some meters have over-registered by roughly 2× actual volume, driving double invoices, while others stopped counting entirely (MDPI, 2020)
Financial and compliance impact:
- Inflated water and sewer bills that compound month after month, since most municipalities calculate sewer charges as a percentage or multiple of metered water use
- Inaccurate sustainability reporting built on faulty consumption data
- Potential warranty complications with metering equipment operating outside its rated range
For facilities tracking water-intensity metrics for ESG or LEED, unconditioned flow does more than inflate costs. It corrupts the baseline data those programmes depend on.
Common Misinterpretations of Conditioned Laminar Flow in Practice
A few misconceptions show up repeatedly in facility conversations about flow conditioning:
- Treating nominal Reynolds number thresholds as absolute. They are context-dependent, shaped by pipe geometry, conditioner design, and demand variability, not a universal cutoff you can apply blindly.
- Ignoring how upstream fittings interact with conditioner performance. A conditioner rated for ideal lab conditions will not perform identically after three elbows and a partially closed gate valve.
- Assuming any flow straightener achieves true laminar conditions. Certification testing matters here; a device that reduces some turbulence does not automatically restore a laminar-like profile at the meter.
Conclusion
Conditioned laminar flow is a governing parameter that shapes meter accuracy, equipment wear, and what shows up on your utility bill.
Understanding its operating range and behaviour is essential for reliable metering, cost control, and system longevity. Published Reynolds number specifications only tell part of the story.
Engineering judgement, backed by a certified flow conditioning device, matters just as much as the numbers on a datasheet. Real pipe runs, demand fluctuations, and upstream fittings rarely match lab conditions exactly.
Frequently Asked Questions
What is the purpose of laminar flow?
Laminar flow provides smooth, predictable fluid movement that improves measurement accuracy, reduces mechanical wear, and minimises turbulence-related losses in piping systems. It gives meters a stable, uniform profile to read.
What are examples of laminar flow?
Slow-moving viscous fluids in small pipes, air passing over an aircraft wing at low speeds, and conditioned flow through a flow conditioning device just after a water meter are common examples.
How does turbulence affect water meter accuracy?
Turbulent, air-entrained flow can cause meters to register more volume than actually passed through the pipe. That over-registration translates directly into inflated water and sewer bills, so accurate meter readings depend on the flow condition at the meter.
What is a flow conditioning device?
It is an inline device that removes entrained air, regulates pressure, and straightens turbulent flow to restore accurate meter readings. Water Flow Innovation's FCD installs immediately after the water meter, on the consumer side of the connection.
How long does it take to see results after flow conditioning is installed?
Savings typically appear on the very next billing cycle, with no ramp-up period. Installation usually takes about an hour and requires only a brief water shutoff at the meter connection, with no access to internal facility systems, process equipment, or operational areas needed.
Can flow conditioning work with any pipe size or meter type?
Yes. FCDs are custom-fabricated in the USA for specific pipe sizes, ½″ through 12″ as standard with larger custom sizes available up to 32″, and work with the meter types used in commercial and industrial facilities.
Would a newer meter read laminar flow more accurately on its own?
Not if the flow reaching it is still aerated. A replacement meter registers everything that passes through, air included, so the same over-reading returns. Conditioning the flow is what changes the result, not changing the instrument.
How much billing difference does conditioned flow make?
Documented installations average a 5–30% reduction in combined water and sewer charges, with a highest documented single result of 46%, from measurement accuracy alone. About 90% of customers reach full ROI in under 12 months.
