Many mine sites don't realise they have this problem. Turbulent flow, air entrainment, and cramped retrofit piping are common in mining infrastructure, and all three cause water meters to over-register. The meter reads more water than actually passed through the pipe, and the facility pays for water it never received.
This article covers why accurate measurement matters at mine sites, what causes flow disturbances in mining water systems, the conditioning devices available to correct them, and how a certified solution like Water Flow Innovation's Flow Conditioning Device (FCD) fixes over-reading without touching production.
Key Takeaways
- Meter over-reading inflates both water and sewer or discharge fees at mine sites
- Turbulence, air entrainment, and short pipe runs drive most meter errors
- Tube bundles and plates fix the flow profile but not entrained air
- Water Flow Innovation's FCD corrects over-reading, and savings show on the next bill
Why Accurate Water Measurement Is Critical in Mining Operations
Mining ranks among the largest industrial water users in the country. US mining operations withdrew an estimated 4 billion gallons per day in 2015, according to the US Geological Survey.
That volume supports extraction, milling, water injection, and dust control, yet it runs through meters never designed for the turbulent, air-heavy conditions typical of mine infrastructure.
The Double-Billing Problem

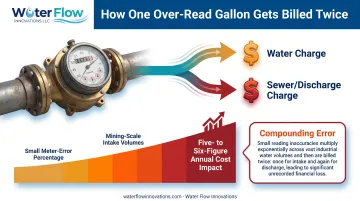

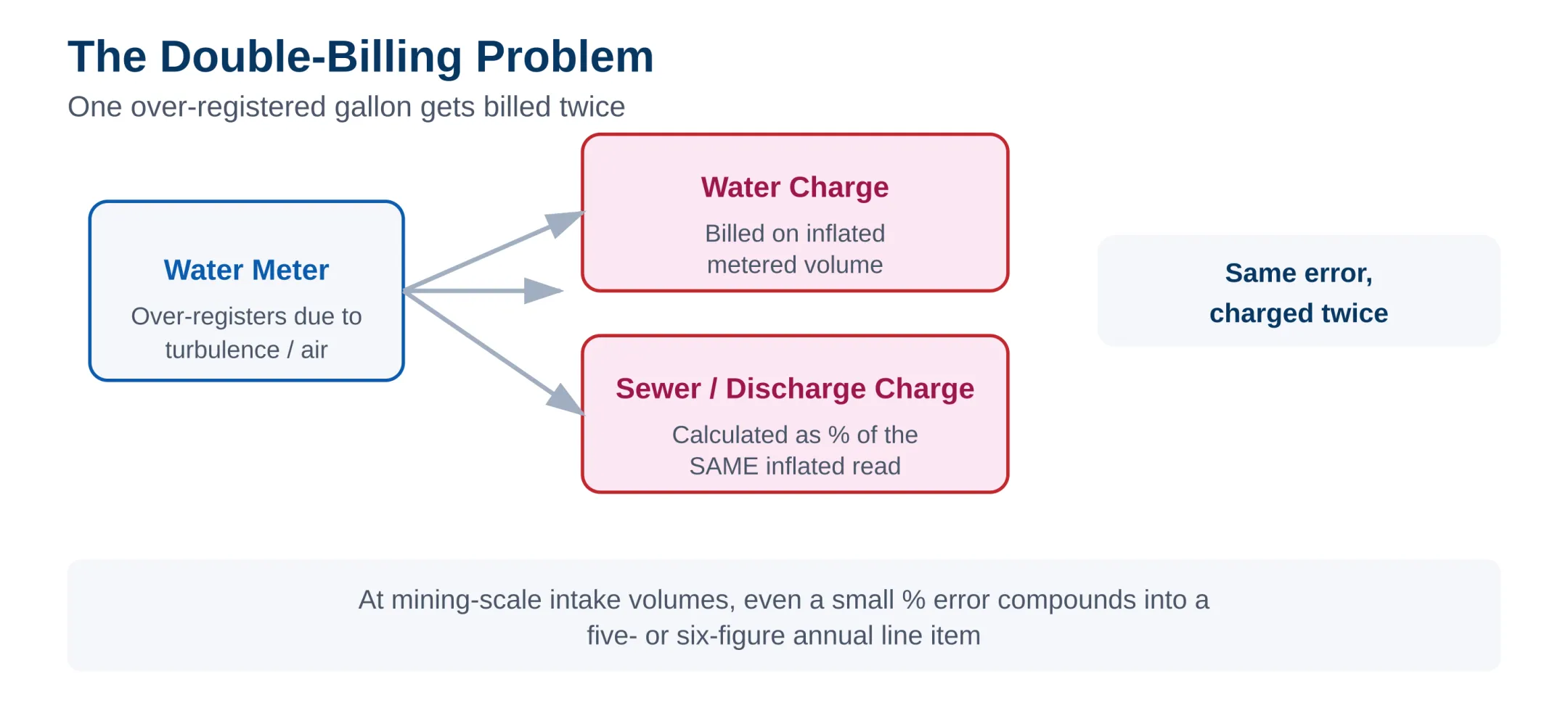

Sewer and discharge fees are usually calculated as a function of metered intake. That means every over-read gallon gets billed twice: once as purchased water, and again as sewer or discharge treatment.
At the intake volumes mining sites run, even a small measurement error compounds into a meaningful annual cost. A facility drawing several hundred thousand gallons a day doesn't need a large percentage error to see it show up as a five- or six-figure line item over a year.
Compliance, Water Balance, and ESG Reporting
Accurate flow data feeds directly into:
- Extraction permits and water rights allocations tied to metered withdrawal volumes
- Site water balance models, where unexplained gaps often reflect meter error rather than real losses
- Discharge permitting, because intake-to-discharge ratios are only as good as the intake data
- ESG disclosures under frameworks such as GRI 303, which require withdrawal reporting by source
If the intake meter is inflated, a mine's water-use-per-ton-of-ore figure looks worse than reality on every one of these documents.
Custody Transfer and Shared Infrastructure
Mines that buy bulk water from a municipality, or share infrastructure with a neighbouring facility, face another layer of exposure. Inaccurate measurement at that connection point can trigger reconciliation disputes and legal risk.
Getting the meter right protects both the budget and the working relationship.
What Disrupts Flow and Causes Measurement Errors in Mining Water Systems
Water meters are calibrated assuming a clean, symmetrical flow profile moving straight through the pipe. Mine site piping rarely provides that.
Installation Effects and Straight-Run Requirements
Elbows, valves, pumps, and reducers are unavoidable in mining piping layouts, and each one distorts the flow profile passing through it.
Engineers call this an installation effect, which is why manufacturers publish minimum straight-pipe requirements for their meters. Those requirements vary by meter type:
- Electromagnetic meters typically need at least 5D upstream and 2D downstream
- Vortex meters, such as the Rosemount 8800D series, call for a minimum of 10D upstream and 5D downstream
- Clamp-on ultrasonic meters often need 10D or more, kept away from anything that could aerate the liquid
Mine sites, especially retrofit, remote, or temporary installations, frequently cannot provide the 10 to 30 pipe diameters of straight run these guidelines assume. Space is tight, piping was laid out for something else, and adding that much straight pipe usually means re-engineering the whole connection.
Air Entrainment: The Hidden Culprit
Turbulence and swirl distort the velocity profile a meter reads. Add air entrainment, and the problem compounds.
Gravity-fed mining water systems, pump suction lines, and open channels all introduce air into the water column. Meters cannot always distinguish between water and the air bubbles riding alongside it, so that air gets counted as billable volume. This is phantom volume: water that was never actually delivered, landing directly on the bill.
Abrasive, Particulate-Heavy Water
Mining process water, slurries, and reclaim streams carry suspended solids that can scatter ultrasonic signals, wear moving parts, and shorten the service life of some conditioning technologies.
Anything installed on a particulate-heavy line needs abrasion resistance. Devices on clean municipal supply lines don't face that exposure.
Types of Flow Conditioning Devices Used in Mining Water Systems
Flow conditioning is the standard engineering fix for installation effects. It reshapes the distorted flow profile the meter sees, restoring the symmetry the measurement equipment was calibrated to expect. The water industry has used some version of this approach for decades, but not every conditioner solves the same problem.
Tube Bundles
Tube bundles are the oldest conditioning approach still in common use. A bundle of parallel tubes, often around 2D long, splits the flow into smaller passages and suppresses swirl as it passes through.
The catch: unequal flow between those passages can recombine into a distorted profile further downstream. In swirling conditions, tube bundles can need 30D to 40D of straight pipe to fully recover a usable profile, which defeats the purpose on a space-constrained mine site.
Perforated Plates
A thin plate with a designed hole pattern creates distributed resistance across the pipe, redistributing the velocity profile and removing rotational swirl more effectively than a tube bundle.
Compared with tube bundles, they typically offer:
- Shorter straight-run requirements in most applications
- A more symmetrical output profile
Those gains still leave a mining-specific gap. Perforated plates reshape the flow profile well, but they were never engineered to deal with entrained air, a limitation shared by conditioners originally built for gas or steam service.
Advanced Multi-Function Conditioning Devices
Water Flow Innovation offers a Flow Conditioning Device (FCD) built specifically to close that gap. It is certified to IAPMO, NSF, ANSI, CAN 61, KIWA, GMP, and SQF standards. Rather than only reshaping the flow profile, it corrects water meter over-reading directly.
The FCD installs immediately after the water meter, on the consumer side of the connection, and creates static back pressure that forms a laminar flow extending backward through the meter itself. Where a pressure-reducing valve is present, the preferred order is Water Meter → FCD → PRV → Building; installing after the PRV is a fallback that runs roughly 20–40% less effective.

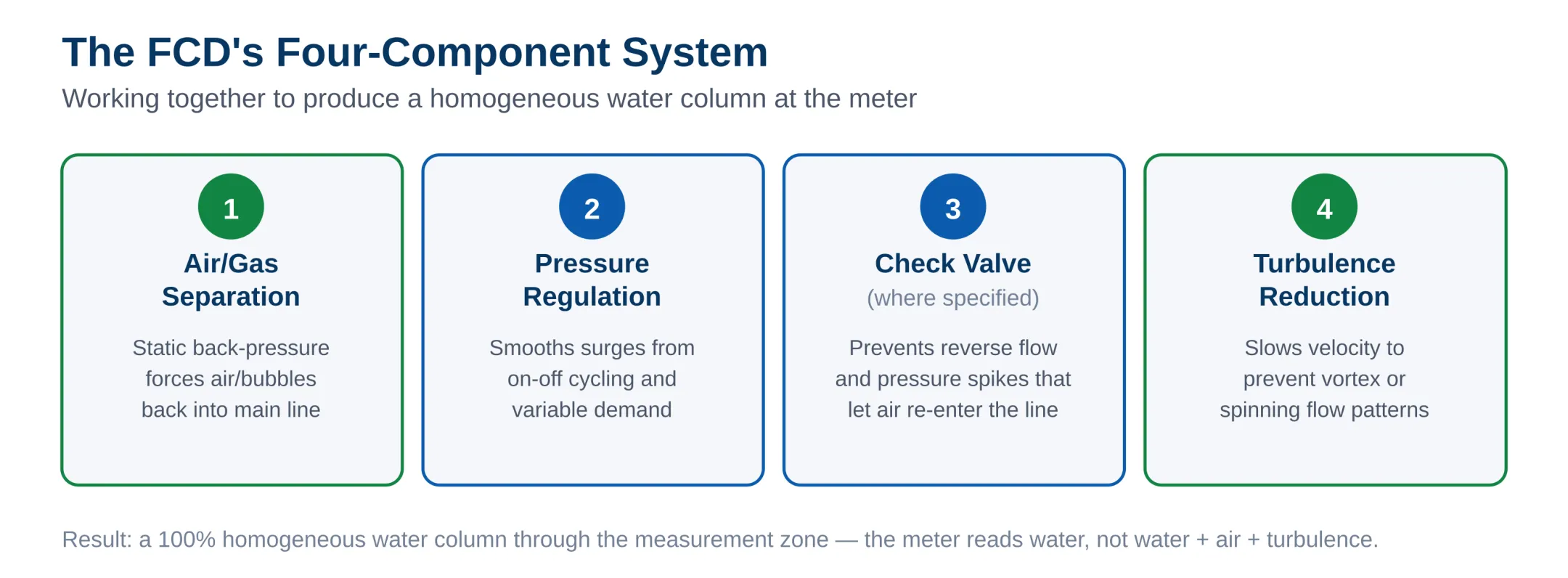

It combines four components in a single housing:
- Air and gas separation — produces a homogeneous water column through the measurement zone
- Pressure regulation — smooths pressure spikes from pump cycling and on-off demand events
- Check valve — where specified, blocks reverse flow that would otherwise reintroduce air into the line
- Turbulence elimination — slows velocity just enough at the meter to prevent the vortex flow pattern that causes over-counting
This combination is why the FCD handles air entrainment issues that tube bundles and perforated plates were never built for. It is custom-fabricated in 316L stainless steel for pipe sizes ½″ through 12″ as standard, with larger custom sizes available up to 32″, works with the meter types used in industrial facilities, and runs at negligible pressure loss.
For a mine site retrofitting a supply line without room to re-engineer the piping, that is the practical difference. One limit worth stating: the FCD corrects the metered municipal supply reading. It does not fix general turbulence elsewhere in the piping system, and it has no effect on NPDES-regulated discharge lines.
Key Benefits of Installing Flow Conditioning Devices in Mining Facilities
Correcting meter over-reading doesn't take months to show up. It shows up on the next bill.
Water Flow Innovation documents an average water and sewer bill reduction of 5% to 30% across installed customers, with a highest single documented result of 46%.
At mining-scale water intake, even the lower end of that range can mean large annual savings, because each corrected gallon cuts both the water charge and the sewer charge.
Fast, disruption-free payback:
- About 90% of customers reach full ROI in under 12 months
- Installation typically takes about an hour, with a brief water shutoff at the meter connection and no access to internal facility systems, process equipment, or operational areas required
- Negligible pressure loss means no impact on flotation circuits, dust suppression, or any other downstream process
For a mine site, that last point is usually what gets a project approved. Nobody wants to schedule a shutdown to fix a billing problem.
Corrected metering also gives mines cleaner data for sustainability reporting.
Documentation That Supports ESG Reporting
Mining companies face growing pressure to document water stewardship for investors, lenders, and regulators. A before-and-after utility bill comparison from an FCD installation gives sustainability teams verifiable, auditable data without adding new measurement infrastructure. That documentation can support:
- CDP Water Security disclosures
- Science-based water target tracking
- Internal water-intensity metrics per ton of ore processed
Since the correction lowers the metered figure rather than actual usage, some sites find their true water efficiency was already better than what prior reporting showed.
How to Select and Install the Right Flow Conditioning Solution for Your Mine
Not every conditioning device fits every site. A few factors determine what's appropriate for a mining water connection.
Selection checklist:
- Pipe size and material — confirm compatibility with existing steel, copper, ductile iron, or PVC lines
- Water quality — clean municipal supply lines differ from lines carrying particulate-heavy process water
- Certifications — for potable or process water contact, require NSF, ANSI, CAN 61, and KIWA credentials
- Available space — measure actual straight-run clearance before assuming a device needs 20D or more
Plan the install around a short outage. Most FCD installations take about an hour once the correct unit is on site. Coordinate with your pipefitter or maintenance crew to isolate the meter run, set the custom-fabricated unit matched to your flange type, bolt pattern, and meter model, and restore flow. No system redesign or ongoing adjustment is required after commissioning.
Consider acquisition flexibility. Mining capital budgets run on cycles that don't always align with maintenance needs. Every FCD is custom made to the connection it serves and made in the USA, and Water Flow Innovation offers both purchase and lease options; lease payments may qualify as an operating expense rather than a capital expenditure.
Both paths include a 6-month money-back guarantee on the purchase price, with installation cost non-refundable, and a lifetime transferable warranty that stays with the device through ownership changes.
Talk to a specialist before you buy. A proper assessment reviews municipal water bills, meter model, pipe size, and pressure conditions to confirm the right FCD specification and project a realistic savings range. Water Flow Innovation offers a free savings analysis remotely, with no on-site visit or purchase commitment.
